Toro 570Z-LP Series Pop-Up Sprinkler Body

Toro® 570Z Series spray heads provide everything needed for residential and commercial contractors to satisfy all installation and retrofit requirements. In combination with Toro spray and rotating nozzles, 570Z Series spray heads can be configured in hundreds of combinations and present an unparalleled range of flexibility. Available in 2”, 3”, 4”, 6” and 12” models with both bottom and side inlet thread options, Toro 570Z Series spray heads are further available with patented in-stem X-Flow® Technology and Pressure Regulating water-saving features. Trusted for over 25 years, Toro's 570Z Series spray heads are the ideal choice.

The Toro 570z Pop-up Sprinkler Body is ideal for all lawn and garden applications, the Toro 570 Series sprinklers are great for residential and service contractors wanting to stick just one sprinkler family. With hundreds of different nozzles, several body styles and a side inlet option, buyers have the ability to satisfy any installation requirement. Whether a small installation or an intricate design, the 570 family has the features you need. Featuring a low-pressure seal that flushes only upon retraction, 570Z models are ideal for small garden and turf areas. Seven distinct popup sprinkler bodies and a host of interchangeable fixed or variable arc nozzles provide unlimited design flexibility.

FEATURES

• Zero flush seal prevents flushing on pop-up, enabling more heads to beplaced on same zone
• Low-pressure sealing at 100 kPa
• Retraction flushing clears debris for reliable pop-down
• Compatible with Toro spray nozzles
• All bodies shipped with a flush plug in place for ease of flushing and riser pull up
• Ratcheting riser permits easy arc adjustment in the field
• Inlet size: 15mm BSPM
• Flow rate: 0.2 – 17 l/m
• Recommended pressure: 137 – 344 kPa
• Pop-up heights: 50mm – 300mm
• Nozzle compatibility:

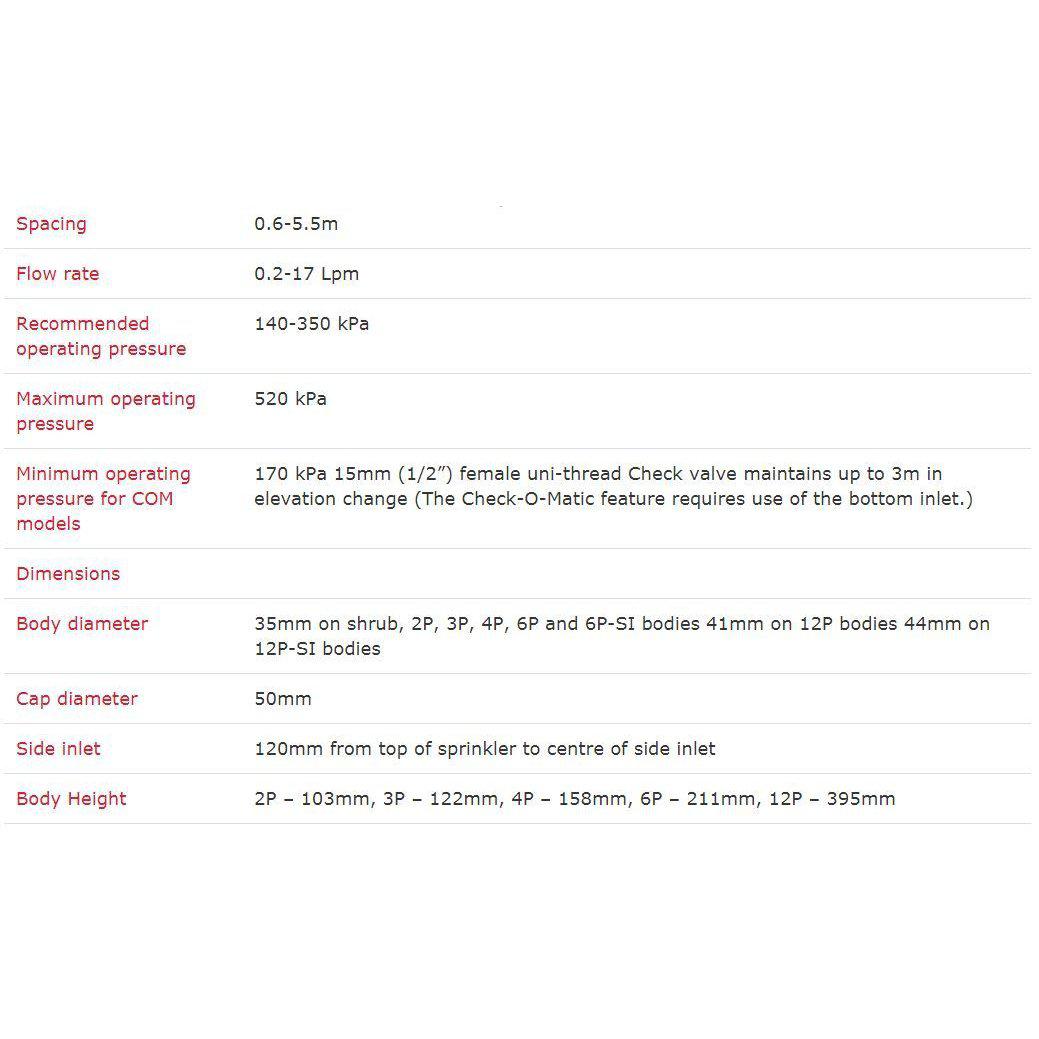

SPECIFICATIONS

NOZZLES
