Sta-Rite CSM850CS 1.50kW Single Phase Manual Submersible Cutter Drainage Pump (Max 925LPM/160kPa)

The CSM850 range of semi open cutter-style impeller submersible pumps are made from heavy duty cast iron and high grade stainless steel. They operate completely immersed in the liquid to be pumped which provides for the cooling of the motor from the outside. Built-in auto-cut protector. Designed for pumping sewage wastewater containing particles up to 35mm in diameter and where stringy materials may be presented.

The CSM range of rugged cast iron submersible pumps is suitable for many dewatering, drainage, water treatment and wastewater applications. CSM850 Cutter pump with 32 mm free passage is suitable for draining water where stringy materials may be present. Featuring dry motor design with automatic thermal overload protection and mechanical overload switch (auto cut-out).

FEATURES

• Manually Operated
• 32 mm free passage
• Semi open cutter impeller
• SiC / SiC mechanical seal
• Auto cut out switch
• Thermal overload protection
• Moisture sealed cable inlet
• Max. head - 17 m
• Max. flow - 885 lpm

APPLICATIONS

• Dairy pit drainage
• Raw sewage disposal
• Low pressure sewage
• Grey water
• Water with stringy material

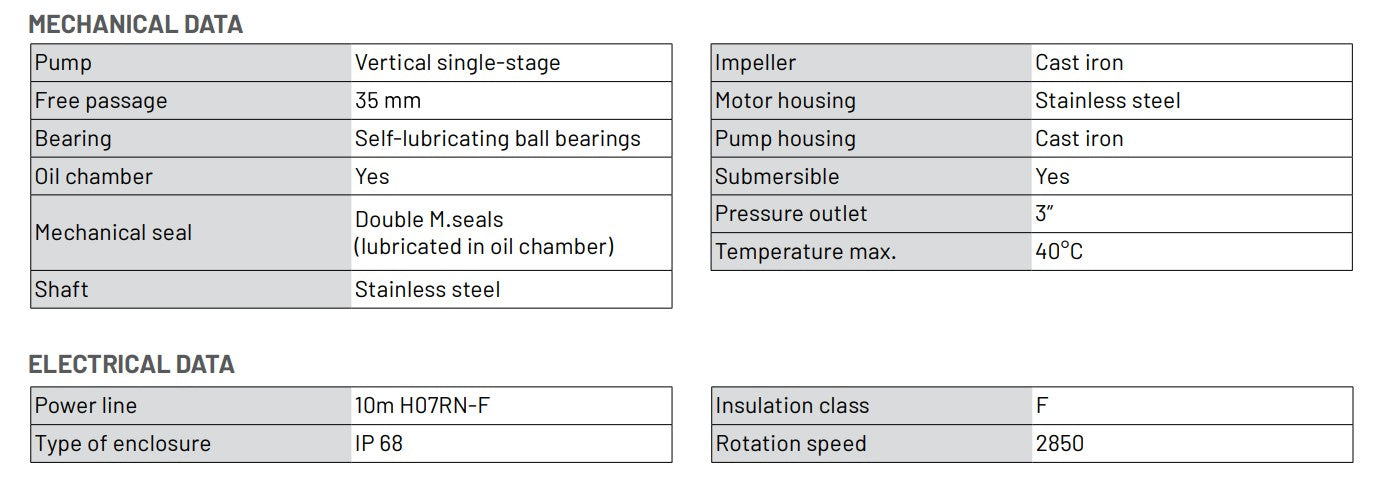

SPECIFICATIONS

• Vertical single-stage
• impeller: cast iron
• motor housing: stainless steel
• Pump housing: Cast iron
• 3" pressure outlet
• 40°C max temperature
• 35mm free passage
