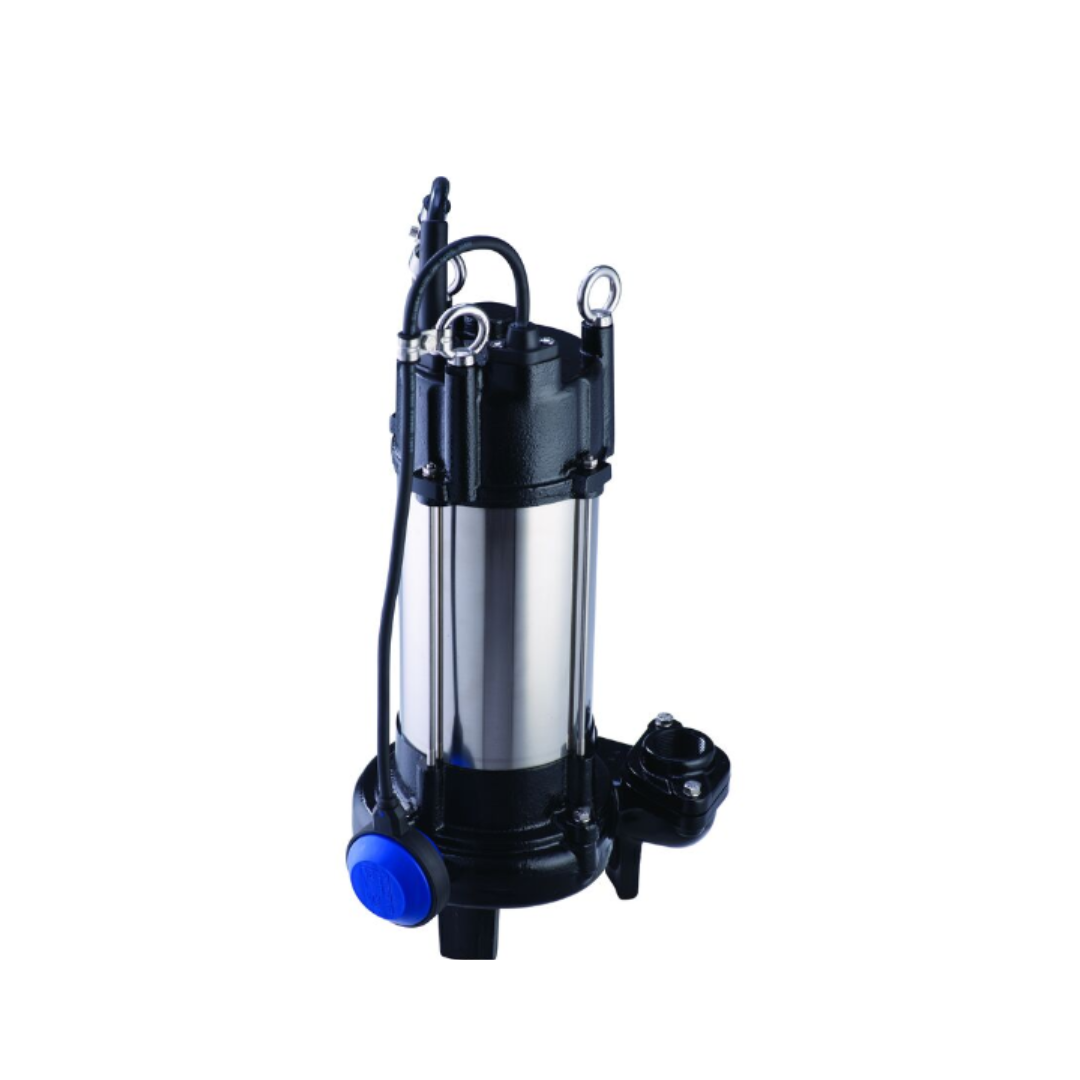

Pumpmaster GPA-Series Submersible Sewage Grinder Pump with Float

The GPA Series of commercial quality Grinder/Macerator pumps is suited for multiple applications. Heavy duty, rugged construction assures a long and economical operational life. The advanced integrated grinding mechanism is particularly well-suited for use with liquids that may contain filaments, plastic bags, long fibers, rubber material etc.

The grinding mechanism has fixed blades and rotating cutters made from chromium-molybdenum alloy steel that is highly resistant to abrasion. Designed to reduce domestic and industrial sewage to a fine slurry, there are 27 cutting edges combining with the two pole high torque motor to provide more than 80,000 shredding actions every minute.

FEATURES

• Rugged & light-weight.

• Stainless steel motor casing.

• Automatic or manual operation.

• Dual ball bearing on motor base to support axial push.

• Double mechanical seal plus shaft seal to isolate the motor from liquids.

• Built-in motor protection with reset.

• CNS/CE/CSA/UL Approval.

APPLICATIONS

• Sewage pumping stations.

• Sewage treatment plants.

• Waster/grey water transfer.

• De-watering.

• Septic treatment systems.

• Sump draining.

• Storm water transfer.

SPECIFICATIONS

• GPA-1B12
  • Automatically Operated
  • Power: 1.48HP / 1.1kW

  • Connection: 32mm Discharge / Outlet

  • Max Flow: 190LPM

  • Max Head: 16m

• GPA-212

  • Automatically Operated
  • Power: 2HP / 1.5kW

  • Connection: 32mm Discharge / Outlet

  • Max Flow: 200LPM

  • Max Head: 23m

• GPA-232
  • Manually Operated
  • Power: 2HP / 1.5kW

  • Connection: 32mm Discharge / Outlet

  • Max Flow: 200LPM

  • Max Head: 23m
