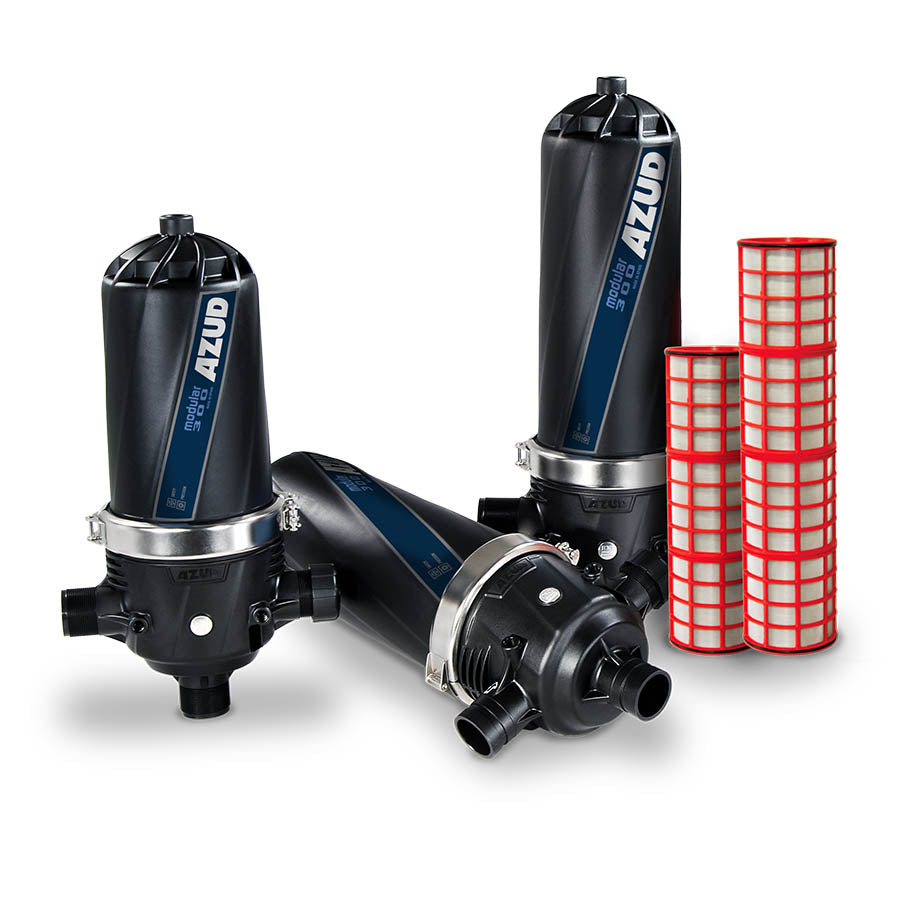

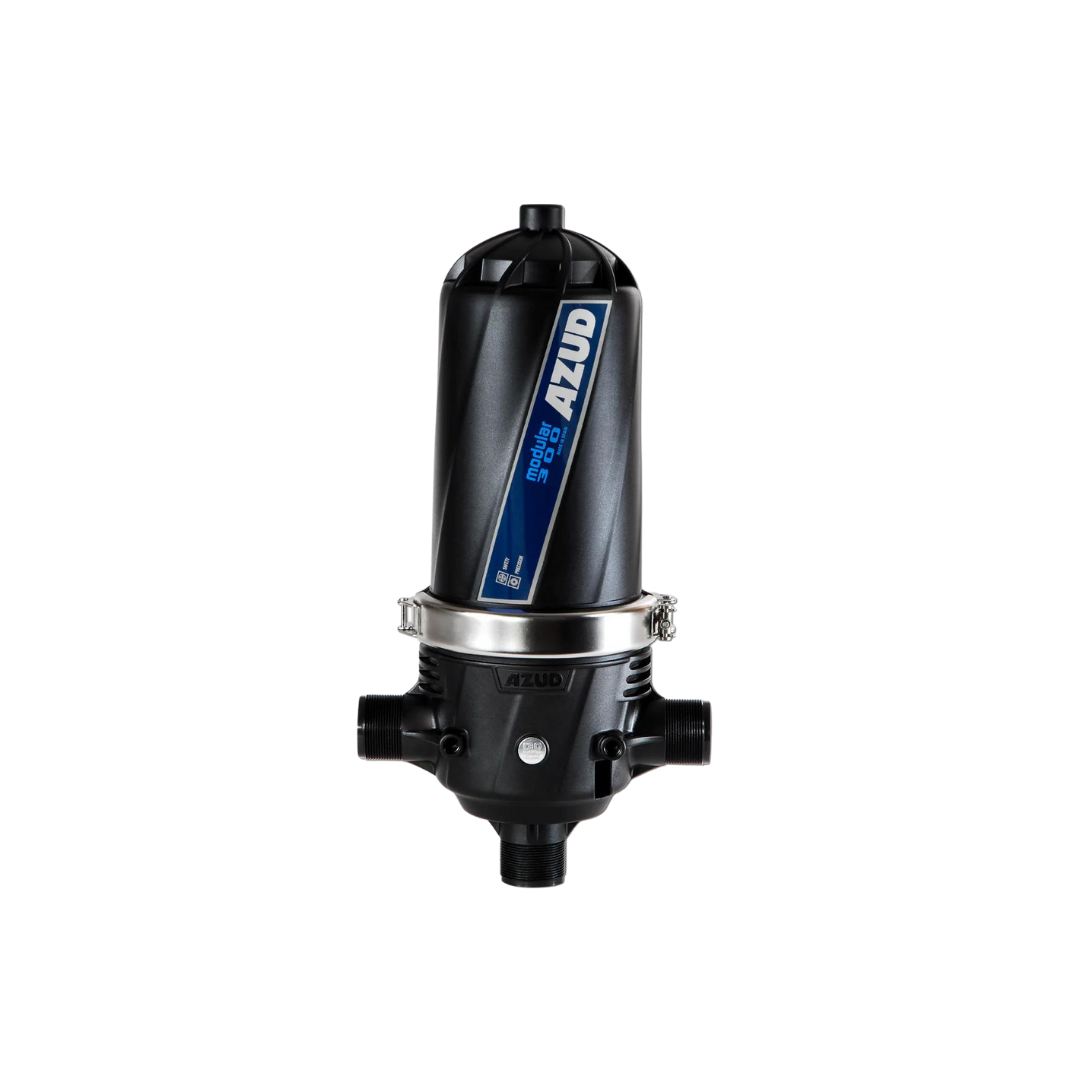

Azud M300 50mm Polypropylene Manual Modular Screen Filter

The Azud Super Modular M300 50mm Screen Filter is engineered for high-efficiency irrigation filtration where reliability and modularity are essential. Built with UV-stabilised, reinforced polyamide and featuring a high-grade 316 stainless steel mesh screen, this manual filter offers long-lasting performance with minimal maintenance and no moving parts susceptible to wear.

Designed to deliver water and energy savings, the M300 series supports flow rates up to 30 m³/h with a generous 1,730 cm² filtration area. Its modular architecture allows quick adaptability to various system configurations, filtration grades, and connection types—all while maintaining durability and ease of service.

FEATURES

• Its studied design and manufacture guarantee a long service life, resistance and filtration quality.

• Modularity - Permits a wide range of possibilities with a minimal number of components
• Versatility, compatibility, easy maintenance.
• The modular system allows a wide range of possibilities with a minimum number of components.
• Made of technical plastic.
• Low maintenance. - no tools are required

• Maximum strength, no moving parts susceptible to wear.
• Water and energy savings.

SPECIFICATIONS

• Pressure gauge connections
• Auxiliary connection
• BSP/NPT/GROOVED connection
• Modular Filter - interchangeable elements in different filtration grades
• Materials of construction
  • Housing - Polyamide reinforced with fiberglass
  • Filtering element - AISI 316 stainless steel screen
  • Clamp - stainless steel
  • Sealing element - NBR
• Filtration degrees of 100, 130 and 200 micron

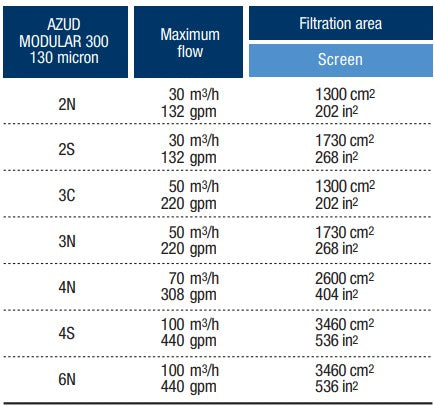

• Maximum Flow - 30m3/h
• Filtration Area - 1730cm2
• 2" connection
