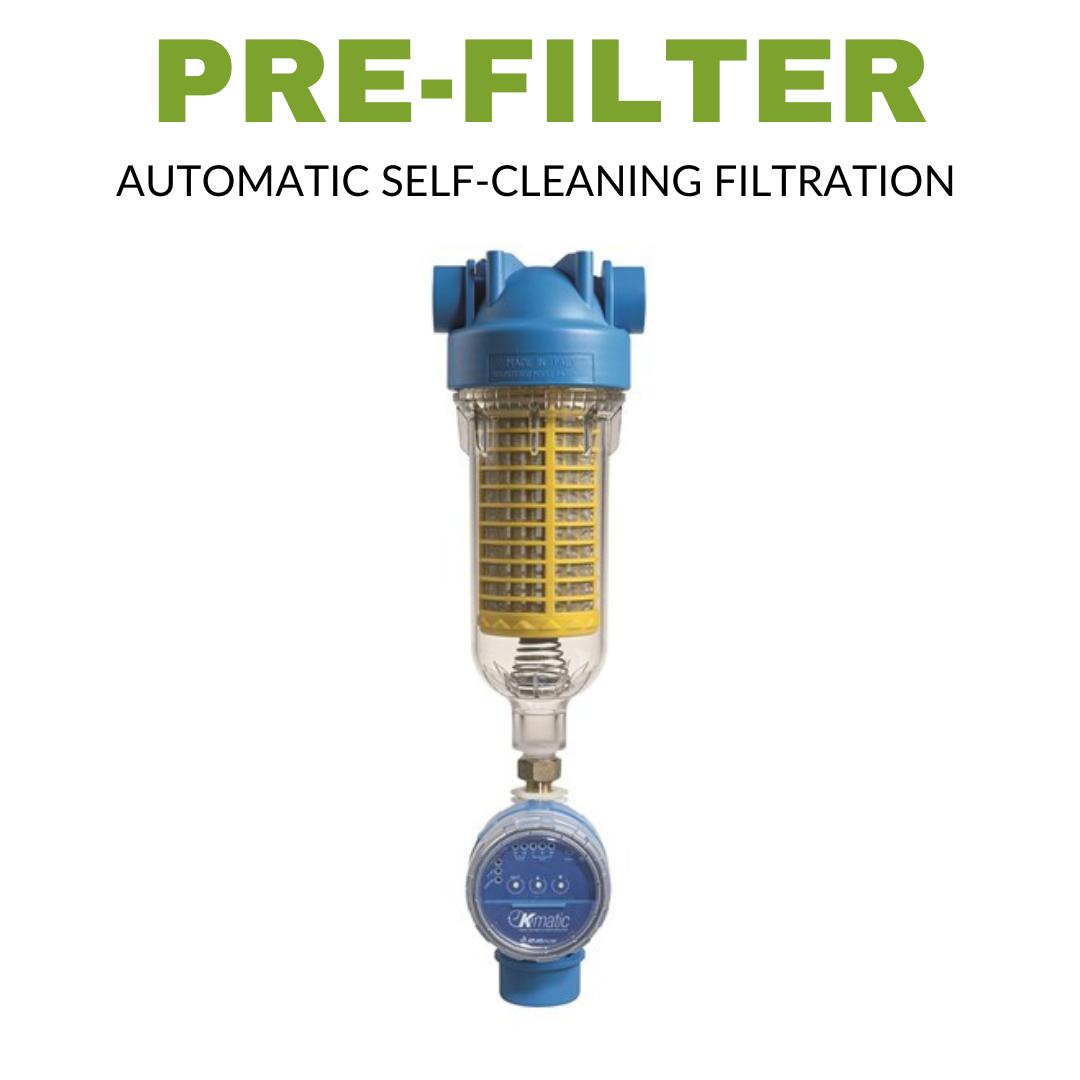

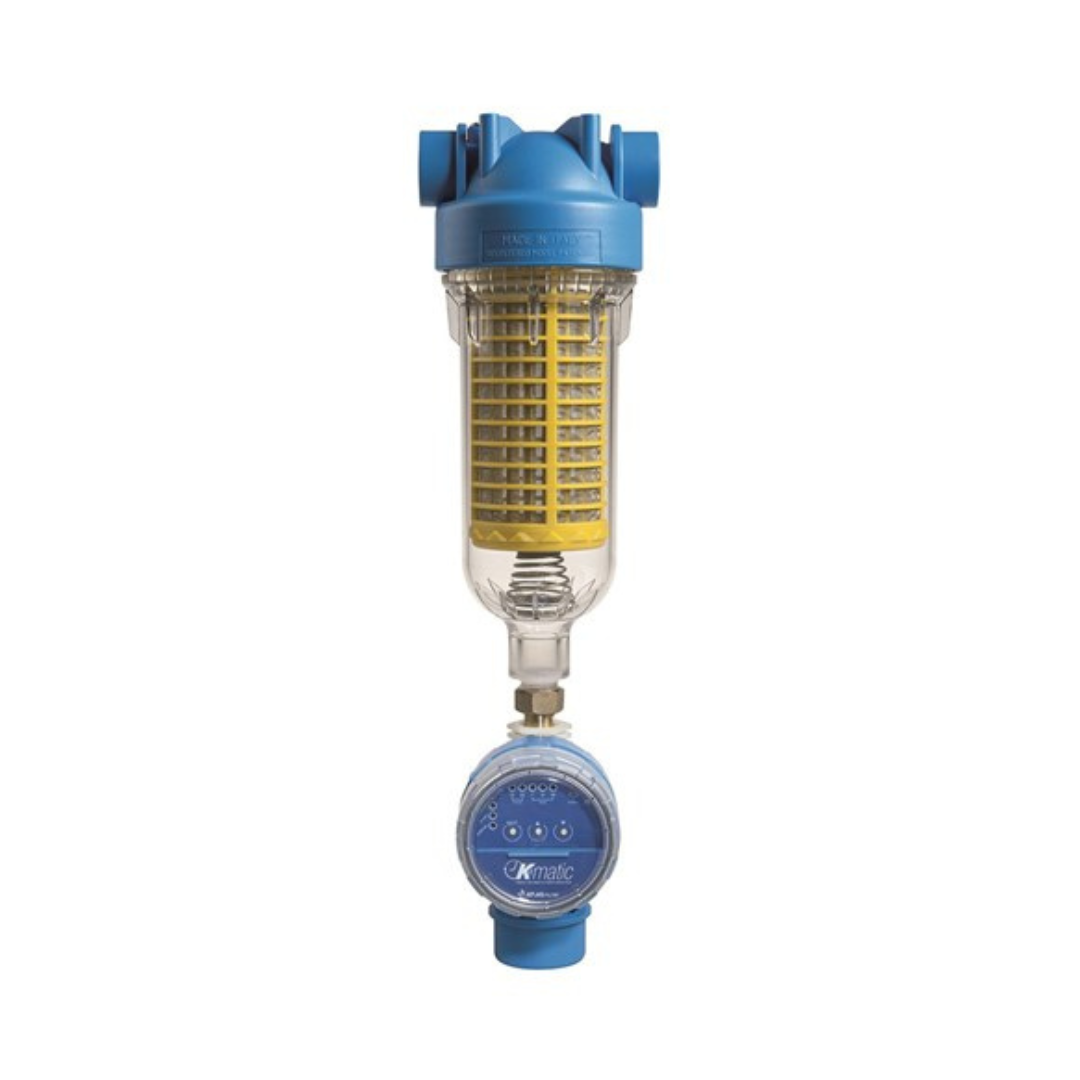

Atlas Filtri Hydra 10" Clear Self Cleaning Sediment Pre-Filter with Kmatic Automatic Backwash Valve

The K-Matic Auto Valve is specifically designed for the Atlas Filtri Hydra series, providing a clean filter cartridge after each automatic wash. This Hydra Self Cleaning Filter includes a 1/2" BSP Brass inlet/outlet, a 90-micron stainless steel mesh filter, and pressure gauges. With a flow rate of 63lpm, it is suitable for removing coarse sediment in residential, rural, commercial, and industrial settings, even under high sediment loads.

FEATURES

• Hydra K-Matic - Cleans Your Water, Cleans Itself
• The maintenance for the self-cleaning Hydra is quick and easy, as there is no need to remove the cartridge to clean it.
• The K-Matic features a programmable solenoid that cyclically operates the solenoid valve in either manual or automatic mode.
• Italian-made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.
• A range of low maintenance mesh filters are available to fit your needs

• Cartridges feature an anti-microbial flat seal
• Counter-current self-cleaning system that is either manual or automatic for maximum particle removal
• The drain funnel has a backflow preventing device, so it is as easy to install on mains water as it is on rural supplies
• All Hydra models come with a spanner, bracket, and O-ring lubricant (Lubrikit)

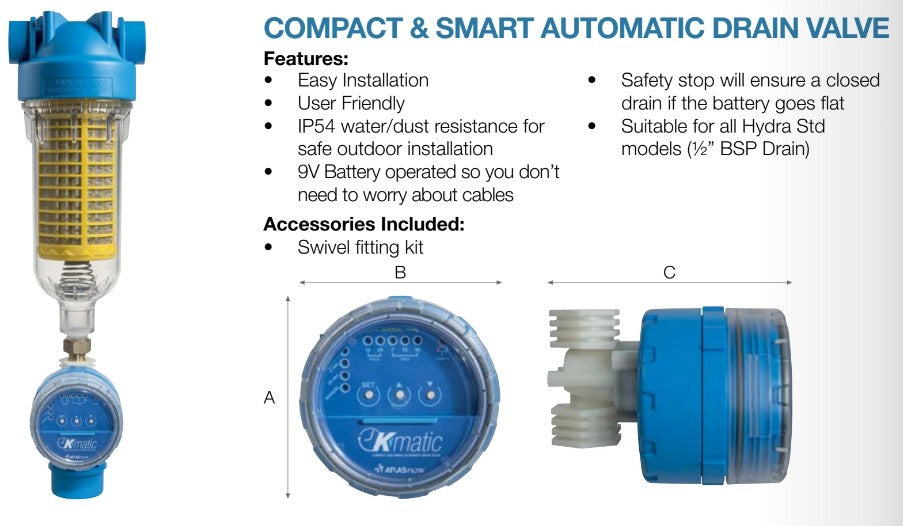

BENEFITS

• Easy installation
• User-friendly
• IP54 water/dust resistance for safe outdoor installation
• Operated by a 9V battery so you don't need to worry about cables
• Safety stop will ensure a closed drain if the battery goes flat
• Suitable for all Hydra Standard models (1/2" BSP Drain)
• Can choose your own flushing interval in automatic mode from 12 hours, 24 hours, 7 days, 15 days, or 30 days

SPECIFICATIONS

OPERATING CONDITIONS
