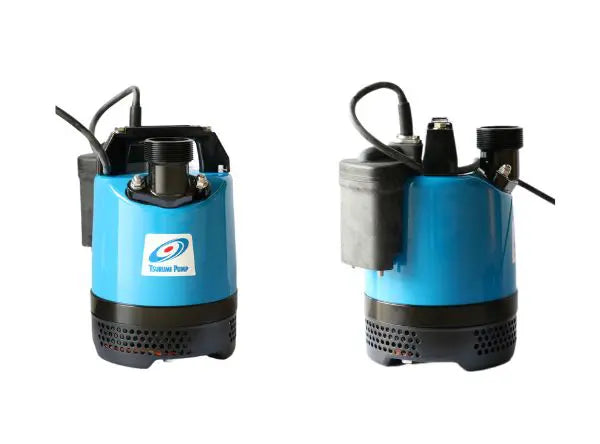

Tsurumi LB-800A 0.75kW Single Phase Portable Submersible Drainage Pump with Semi-Vortex Impeller and Relay Unit (Max 330LPM/150kPa)

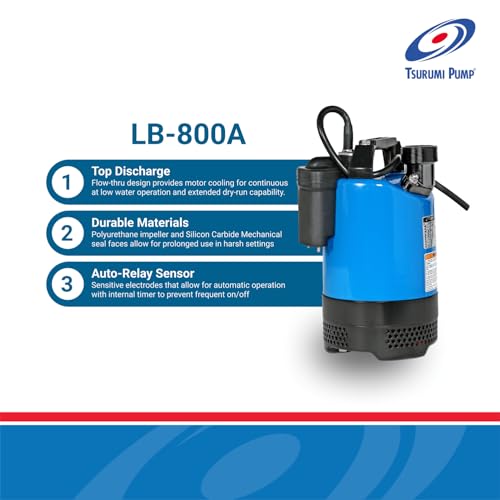

LB-800A Slimline design pump allows to fit into 8" pipes. Powerful pumps built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability

FEATURES

• Semi-vortex urethane rubber or high chrome cast iron impeller;suspends solids and allows for pumping of sand and stringy material.

• Highly efficient, continuous duty air-filled, copper wound motor with class E,B insulation minimises the cost of operation.

• Built in thermal protection prevents motor failure due to overloading, accidental run-dry and single phasing in three phase units.

• Double inside mechanical seals with silicon carbide faces running in an oil filled chamber provide for one the most durable seal designs available.

• Double shielded, permanently lubricated, high temperature C3 ball bearings rated for a provide for extended operatoinal life
• Model LB-480A & LB-800A Automatic Submersible pump performs like the non-automatic version in every aspect of construction site usage requiring a tough and durable pump

• Slim design allows pumps to fit Into 8” pipes. (Manual type only)

APPLICATIONS

• Residential, commercial, industrial wastewater and site drainage.Decorative waterfalls and fountains.

• Raw water supply from lakes or rivers.

• Sediment removal from small sumps or basins.

SPECIFICATIONS

• Motor Output (HP): 2/3

• Phase: Single

• Discharge Bore (in.): 2

• Voltage/Amp: 110/6.1

• Cable Length (ft.): 32

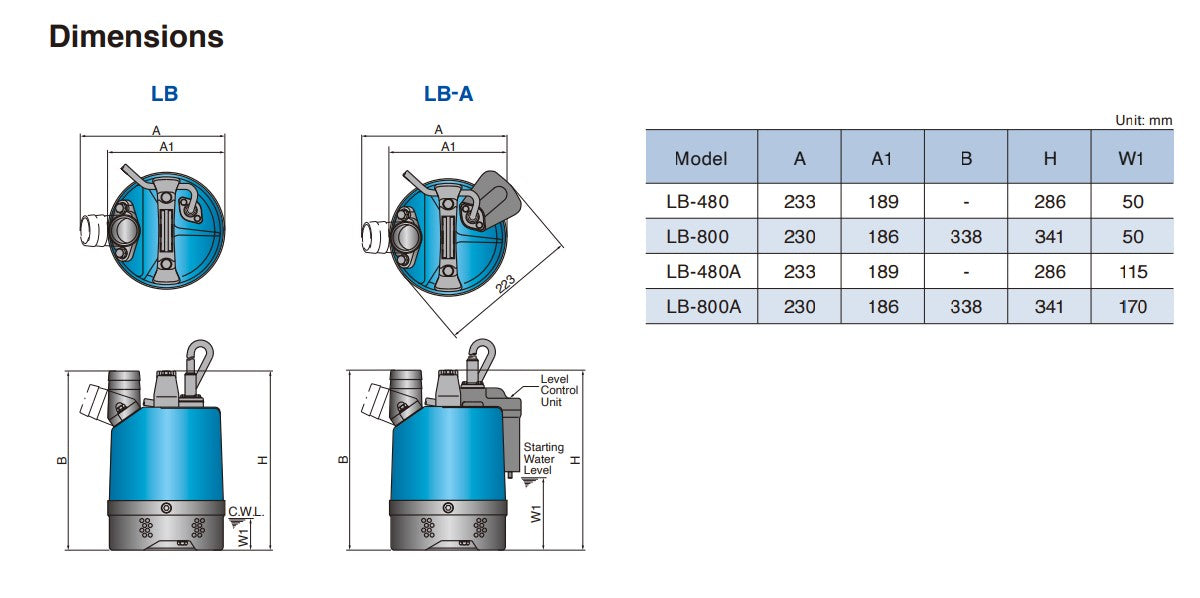

• Dimension (Dia x H, in.): 7-11/16 x 11-1/4

• Continuous Running Water Level (in.): 2

• Pump Weight (lbs.): 28
