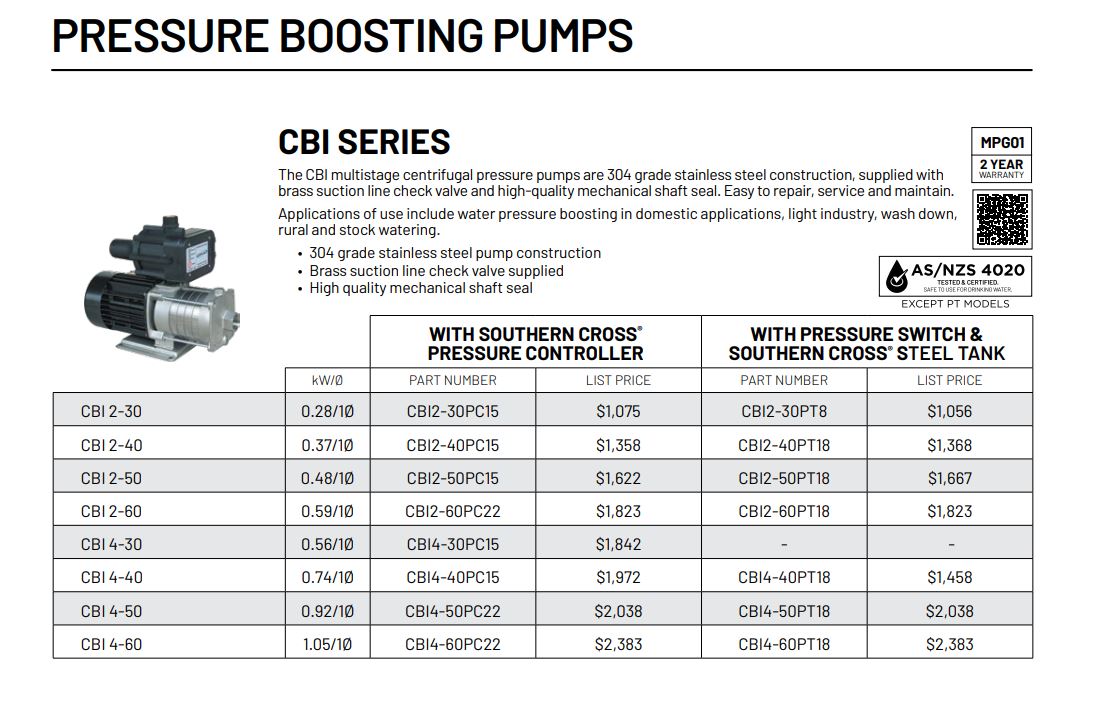

Southern Cross CBI Series Pressure Pumps with Press Control

The Southern Cross multistage centrifugal pressure pumps are designed for automatic water pressure boosting in domestic applications, light industry, wash down, rural and stock watering, where reliability, efficiency and ease of installation are important. CBI pumps are available with either press control or pressure tanks. All pumps are 304 grade stainless steel construction, supplied with brass suction line check valve and high quality mechanical shaft seal. These pumps are easy to repair, service and maintain.

INSTALLATION

The pump should be installed as close as possible to the liquid source, and covered by a weather-proof housing, well ventilated to allow motor heat to escape. The pump foundation should be rigid enough to absorb any vibration from the motor, and the pump should be securely bolted to the foundation. It is also recommended that the plumber/ installer provides an adequate draining system to avoid damage in case of leakage, particularly when installed indoors.

APPLICATIONS

• Domestic
• Agricultural
• Light industrial
• Pressure boosting
• Heating and cooling systems
• Potable water supply

KEY FEATURES

• Presscontrol systems (electronic hydraulic controller) for excellent pressure and flow control without a pressure tank
• Special corrosion resistant coating for clean water supply and extended tank life
• All 304 grade stainless steel pump construction
• Brass suction line check valve supplied
• High quality mechanical shaft seal
• Simple repair, servicing, maintenance and parts replacement

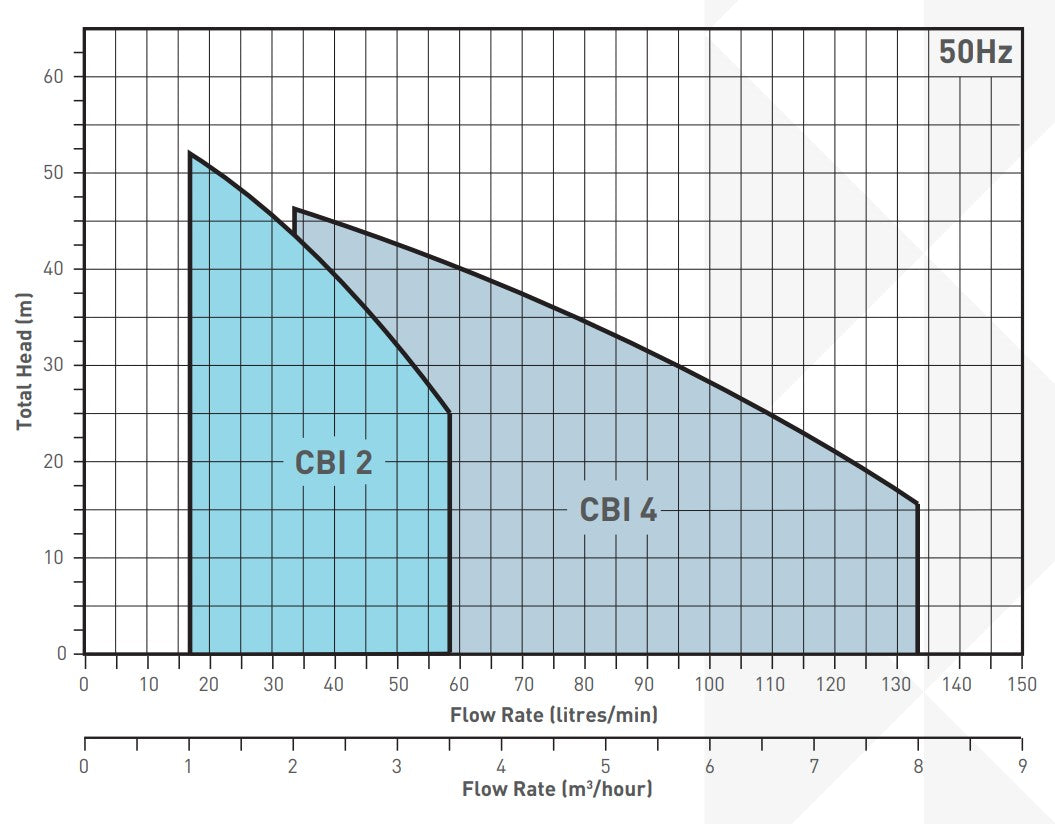

• CBI-2: 25mm (1” BSPF)
• CBI-4: 32mm (1 1/4” BSPF) x 25mm (1” BSPF)
