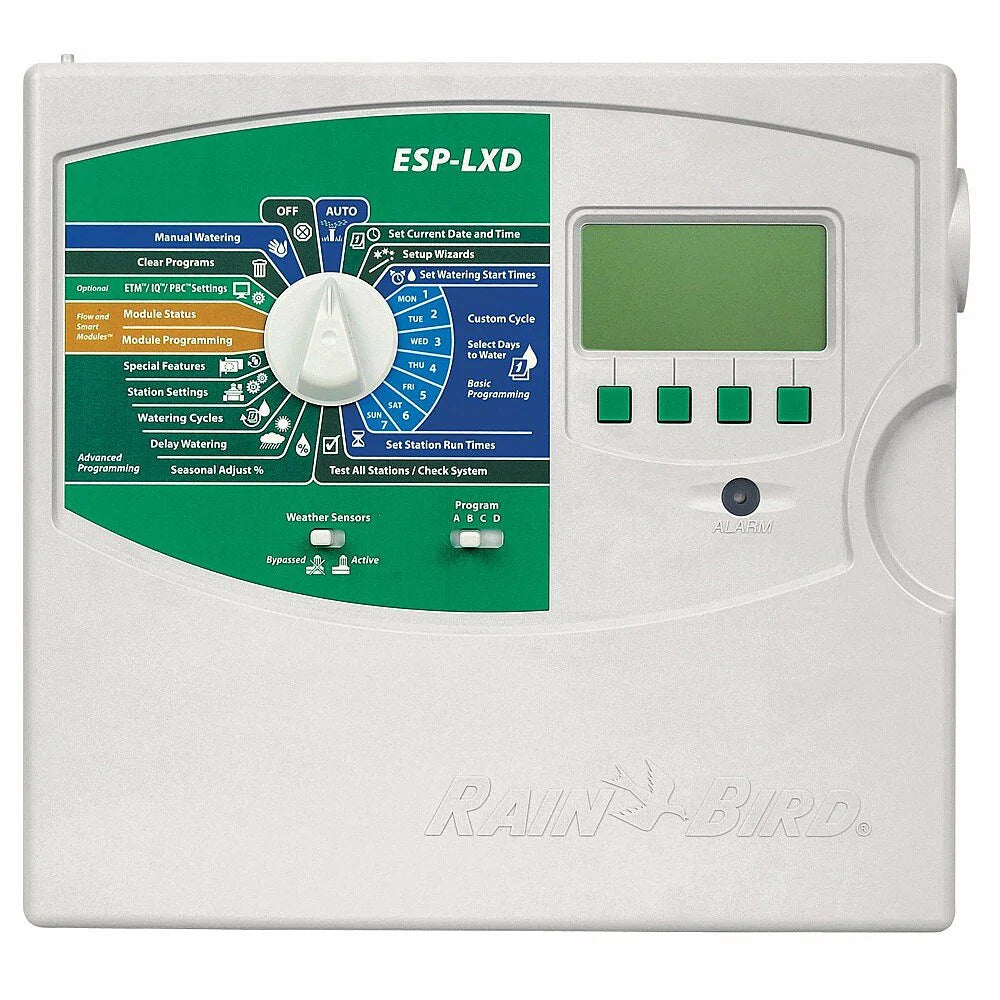

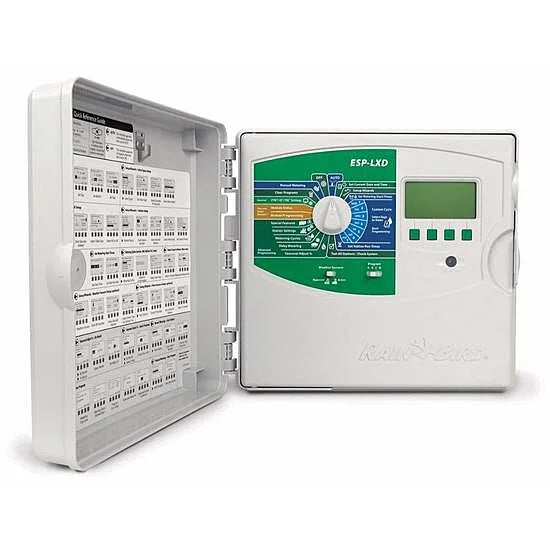

Rain Bird ESP-LXD Commercial 2 Wire Decoder Outdoor Controller (Expandable to 200 Station)

The result of 40 years of expertise and thousands of installed units, the ESP-LXD is a modern, reliable, two-wire decoder controller. With a large display, simple-to-use ‘hand’ ‘off’ ‘auto’ dial, English/Spanish language support, and extra simple programming, the ESP-LXD dramatically cuts installation and troubleshooting time for even up to the most extensive operations

FEATURES

• Two-wire run lengths up to 2.5 miles (4km)

• Control well, boost, fertigation, and other pumps

• Up to 96-hours of continuous runtime

• Up to 8 simultaneous stations

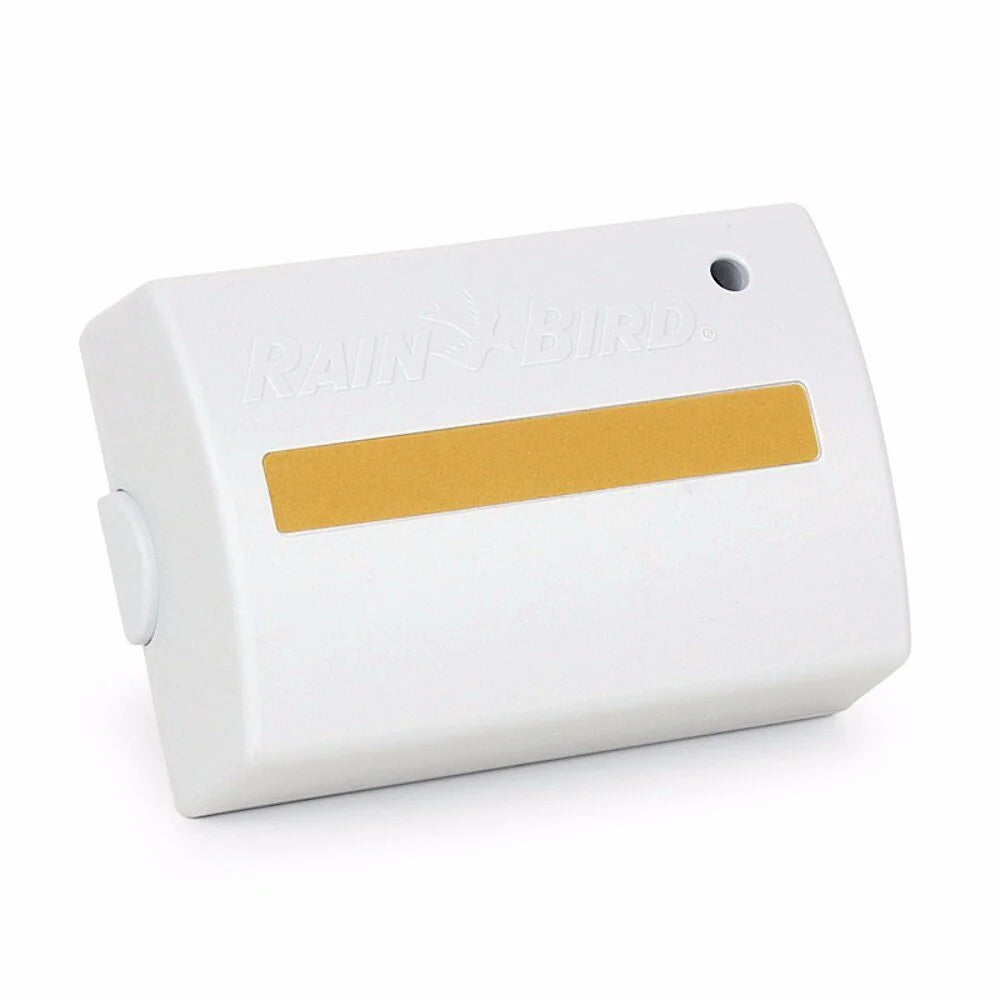

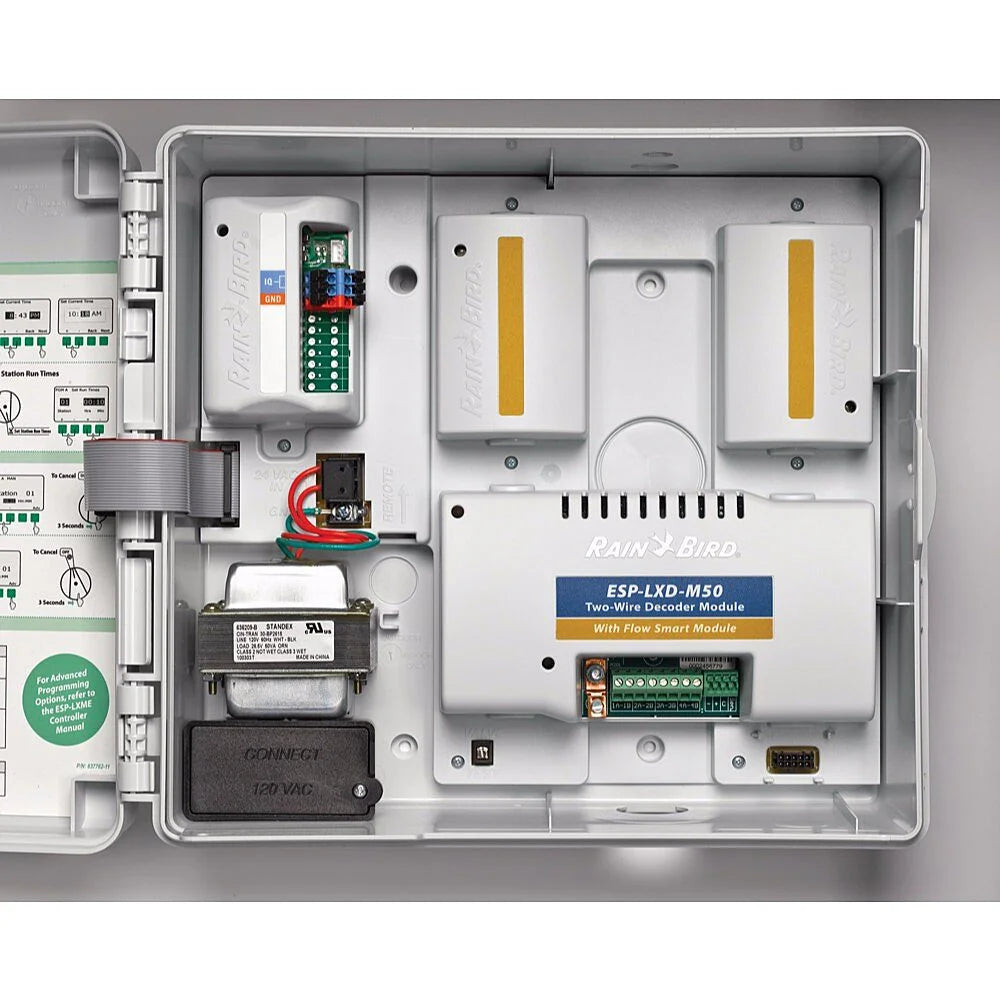

• 50 station two-wire decoder controller standard, expandable to 200 stations with optional 75-station expansion module

• Upgradeable to remote access with ClimateMinder

SPECIFICATIONS

• Station timing: up to 96 hours of continuous runtime

• Program level and global Monthly Seasonal Adjust: 0% to 300%

• 4 independent programs (ABCD); ABC programs stack, ABCD overlap

• 8 start times per program

• Manual station, program, test program
• UL, CE, cUL and C-Tick Certified
• Input required: 120 VAC ± 10%, 60Hz

• Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule

• Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous
• operation of up to eight solenoids and/or master valves

DIMENSIONS

• Width: 364mm
• Height: 322mm
• Depth: 140mm
