Tsurumi 50UTZ2.75S 0.75kW Single Phase Compact Submersible Wastewater Pump with Vortex Impeller (Max 438LPM/125kPa)

The UT pump is a compact economical cast iron pump, which has a large passage that makes it ideal for liquid containing various solids. Available in automatic operation (50UTZ2.4S / 2.75S), which are equipped with floats. UT / UTZ Series sump pumps are compact and economical cast iron pumps. The pump has a large passage that makes it ideal for liquid containing various solids. The semi-vortex design provides a wide 35 mm large solids passage that reduces clogging of solid matter to a minimum. In addition, the UTZ-series is an automatic model equipped with a simple float switch that prevents dry-running operation and reduces power consumption

FEATURES

• Anti-wicking Cable Entrance

  • Maximum protection against water incursion through the cable entry.
• Motor Protector

  • A built-in thermal motor protection device reacts to the heat caused by overcurrent or run-dry conditions by shutting down the motor circuit automatically. When the motor cools down to a safe operating temperature, the motor restarts.

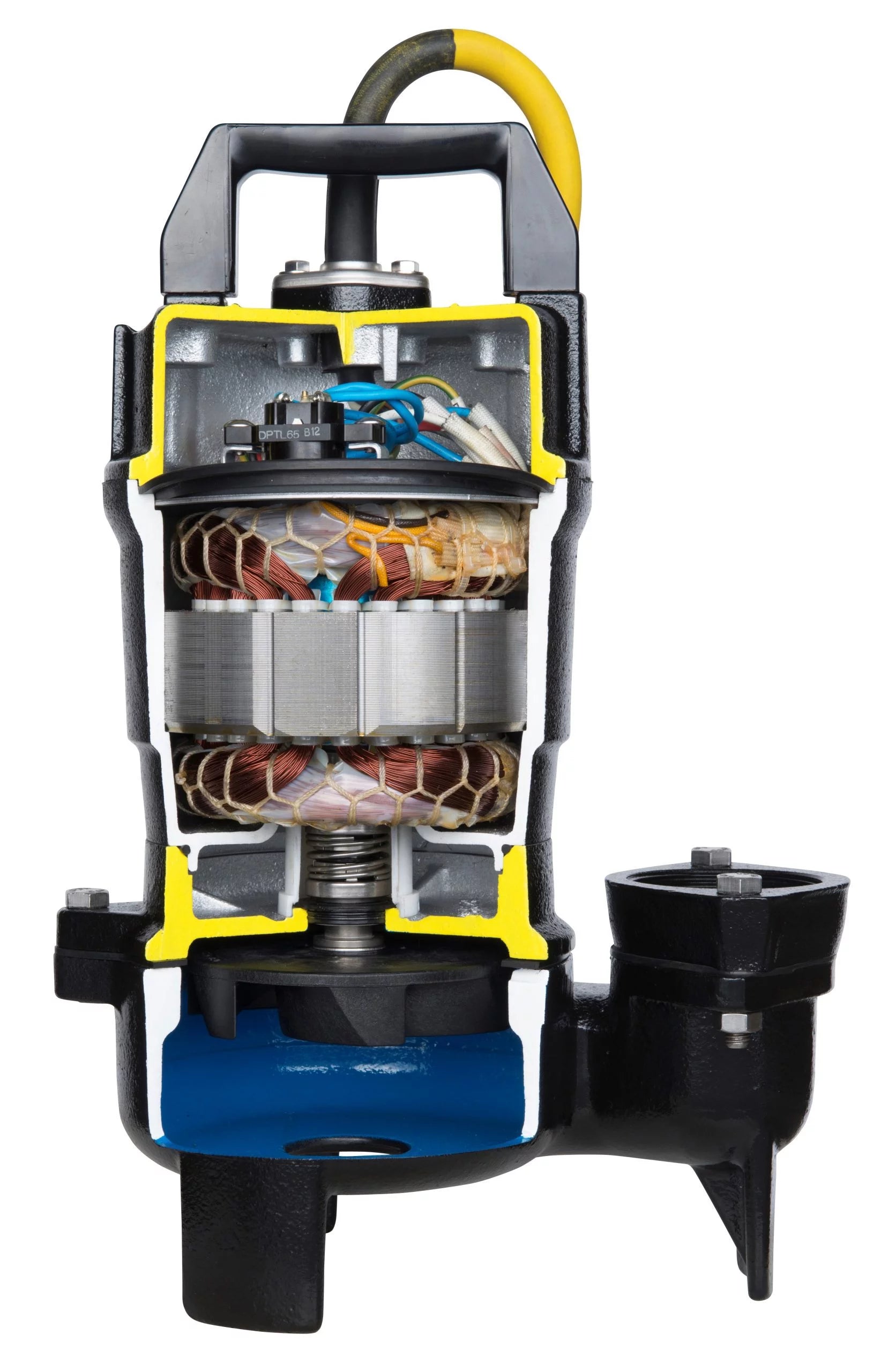

• Dual Inside Mechanical Seal

  • The dual inside mechanical seal (dual face mechanical seal located in an oil bath) is incorporated in all pumps. As both top and bottom sealing faces are lubricated by the oil, it ensures a longer life of the product and a stable sealing effect.

• Oil Lifter (Patented)

  • Tsurumi’s exclusive Oil Lifter encloses the mechanical seal and uses the
    centrifugal force generated by the rotating shaft and seal to pump oil to the upper seal faces. Upper and lower seal faces are positively lubricated even when extremely low oil levels exist, as experinced after long periods of extended operation.

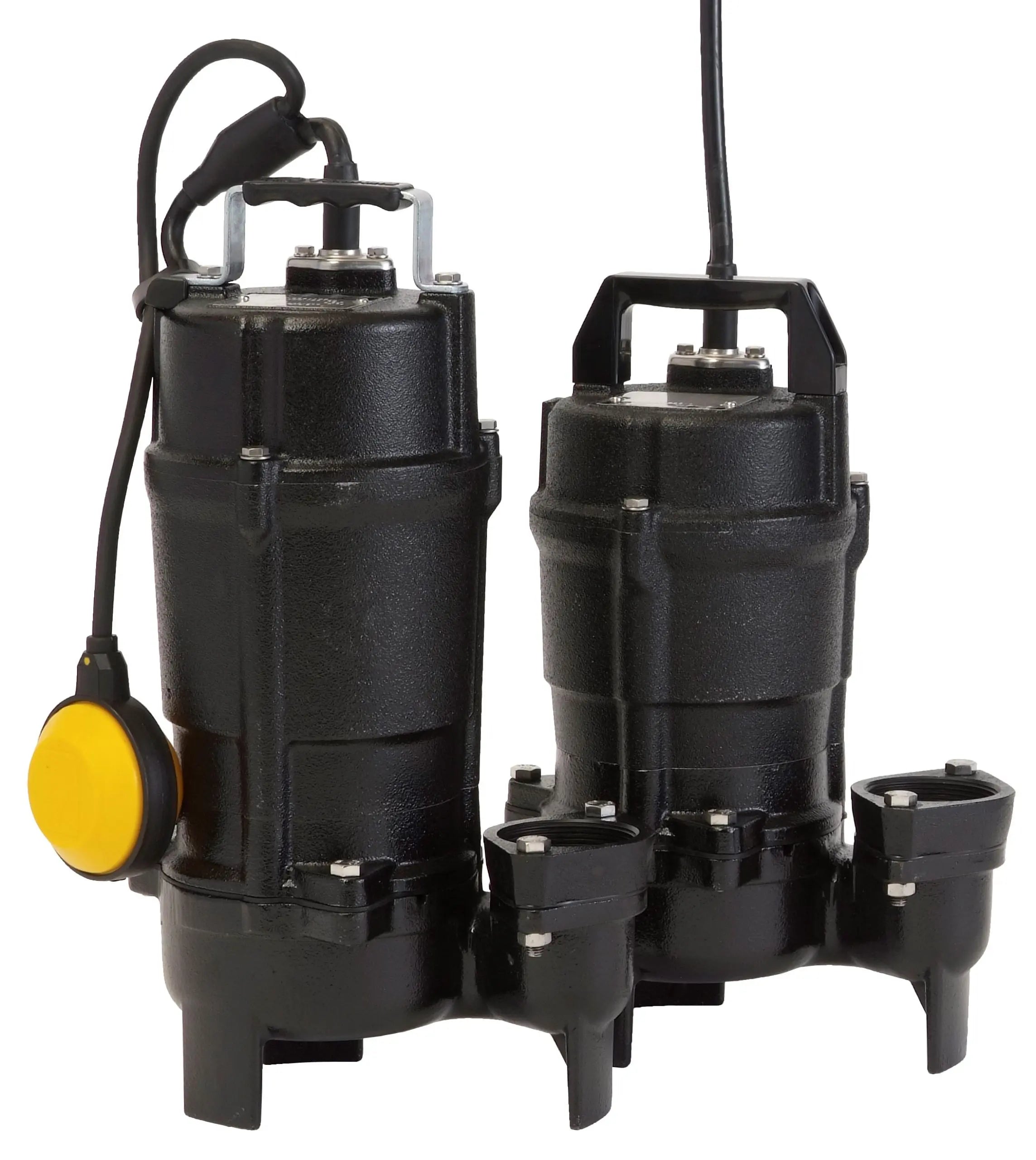

• Automatic Operation with Float Switch

  • (50UTZ2.4S & 50UTZ2.75S) The pump operates a float switch for automatic operation to prevent dry running and lower power consumption.

SPECIFICATION

• Motor Output (HP): 1/2

• Phase: Single

• Discharge Bore (in): 2

• Voltage/Amp: 110/5.7

• Cable Length (ft.): 20

• Dimension (Dia x H, in.): 11-5/8 x 15-3/4

• Solids Passage (in.): 1.4

• Pump Weight (lbs.): 31

APPLICATION

• Transferring wastewater between storage tanks
• Draining sewage from factories, home residences, hotels, retaurants, ect.
• Pumping water run-off containing solids.
