Azud M300 100mm Super Polypropylene  Manual Modular Screen Filter

The Azud Super Modular M300 100mm is a premium manual filtration system engineered for high-demand irrigation applications. With its robust, modular design and UV-stabilised thermoplastic construction, this filter delivers outstanding performance, maximum filtration safety, and minimal maintenance even in the harshest environments.

Designed for flow rates up to 100 m³/h, it features an expansive filtration surface of 3,460 cm² and a stainless steel AISI 316 screen for long-lasting, corrosion-resistant operation. The modular build allows for versatile configuration, quick maintenance without tools, and easy adaptation to different filtration needs.

FEATURES

• Its studied design and manufacture guarantee a long service life, resistance and filtration quality.

• Modularity - Permits a wide range of possibilities with a minimal number of components
• Versatility, compatibility, easy maintenance.
• The modular system allows a wide range of possibilities with a minimum number of components.
• Made of technical plastic.
• Low maintenance. - no tools are required

• Maximum strength, no moving parts susceptible to wear.
• Water and energy savings.

SPECIFICATIONS

• Pressure gauge connections
• Auxiliary connection
• BSP/NPT/GROOVED connection

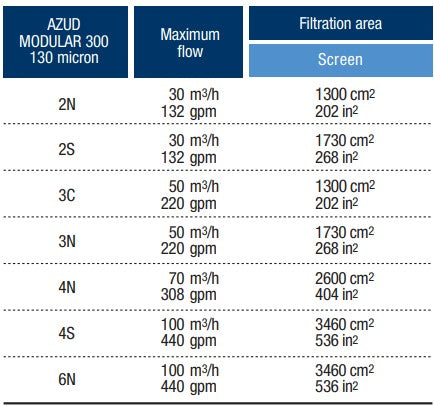

• Modular Filter - interchangeable elements in different filtration grades
• Materials of construction
  • Housing - Polyamide reinforced with fiberglass

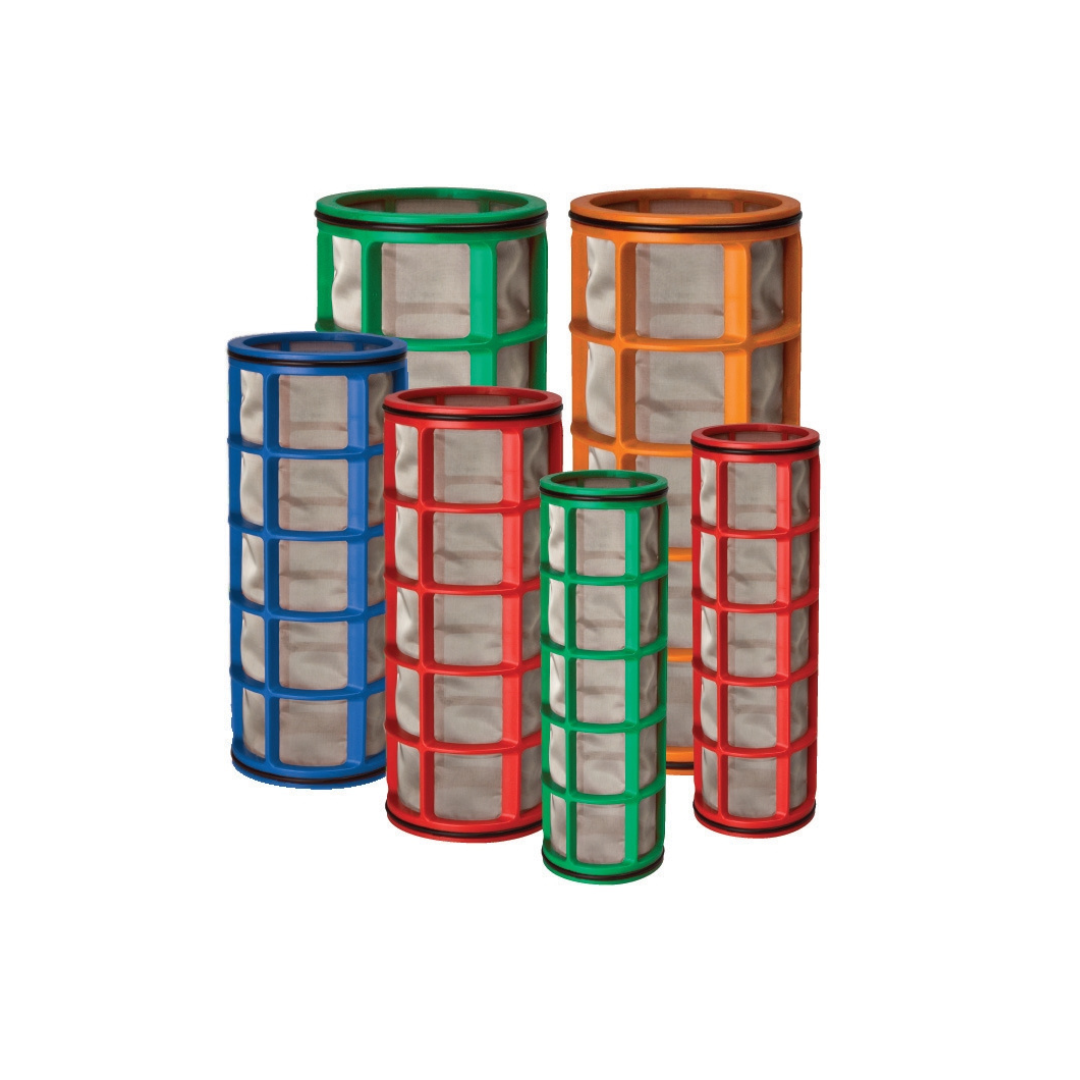

  • Filtering element - AISI 316 stainless steel screen
  • Clamp - stainless steel
  • Sealing element - NBR
• Filtration degrees of 100, 130 and 200 micron
• Maximum Flow - 100m3/h
• Filtration Area - 3460cm2
• 4" connection
