1994-2002 Dodge Ram 5.9L Cummins Diesel PhatShaft Turbocharger - High Performance Turbo Upgrade for Towing & Off-Road Adventures

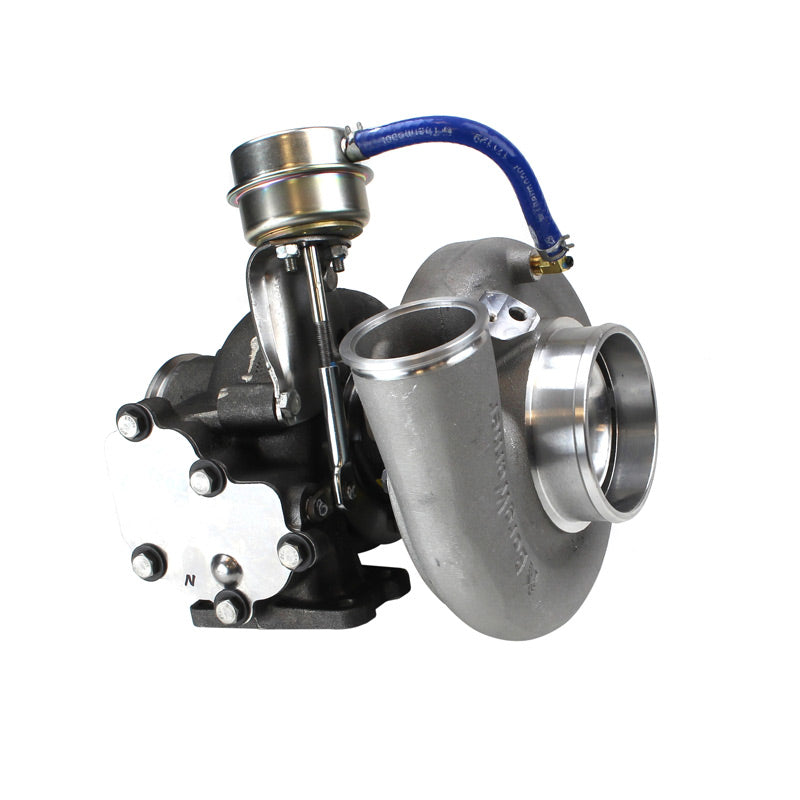

1994-2002 5.9 Cummins PhatShaft Turbos

Fits: 1994-2002 5.9 Cummins

Item Type: Industrial Injection 5.9 Cummins PhatShaft

Brand: Industrial Injection

 FEATURES:

• Increased Performance
• Lower EGTs
• Designed For Towing & Daily Driving
• 62mm or 64mm Compressor Wheel
• 65mm Turbine Wheel
• (FMW) Forged Milled Compressor Wheel
• 360* Thrust Bearing
• Dual Grooved High Performance Journal Bearing
• Drop In Replacement Turbo

 The Industrial Injection Original PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing and daily driving. The PhatShaft comes equipped with an extended tip 62mm, or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 65mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

NOTE: Requires HX40 Downpipe

NOTE: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod

*All Industrial Injection Performance Products Are Not Legal For "On-Road", "Off-Road", or "Dual-Use". These Products May Only Be Used In " Dedicated Competition Use Only" Vehicles. Compliance With State and Federal Emission Standards Is The Consumer's Responsibility.
