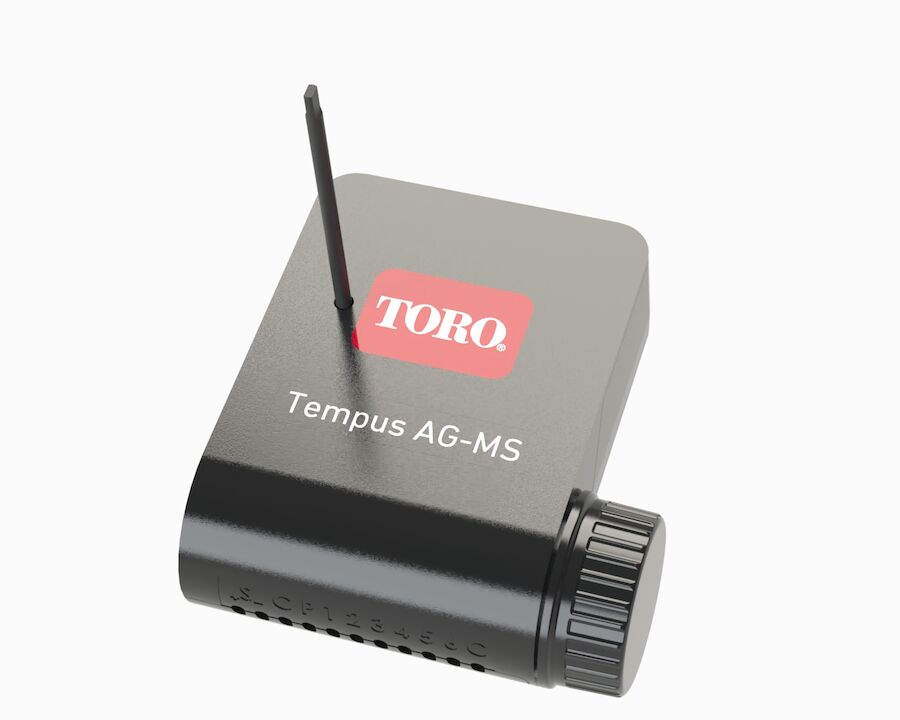

Toro Tempus AG-MS Single/Multi-Sensor Module

The module receives field data from 1-4 sensor inputs (among temperature, soil humidity, air humidity, wind and pluviometer). The module communicates with Gateway (4G or Wi-Fi) transmitting detected field data. The module allows direct connection from smartphone / tablet via Bluetooth®

SPECIFICATIONS

• LoRa™ radio connection
• Modules are battery powered no need for wiring
• 1 or 4 sensor inputs (MS-1 or MS-4 respectively)
• LoRa™ range up to 800 m
• 1 temperature acquisition input (MS-4 model only)
• 1 or 3 configurable inputs (respectively for MS-1 and MS-4):
• Dry contact (rain sensor, pluviometer...)
• Pulse (flow meter, wind sensor)
• Analog 0-3,5V (humidity sensor)
• Bluetooth® Smart 4.0 Low Energy
• Alert function based on daily thresholds
• Remote management via MyToroTempus App and MyToroTempus.com Web Platform
• IP68 waterproof
• Power Supply 9V DC battery
• Operating Temperature: -20°C / 60°C
