Tsurumi LSC1.4S 0.48kW Single Phase Portable Submersible Drainage Pump with Swing Check Valve (Max 168LPM/110kPa)

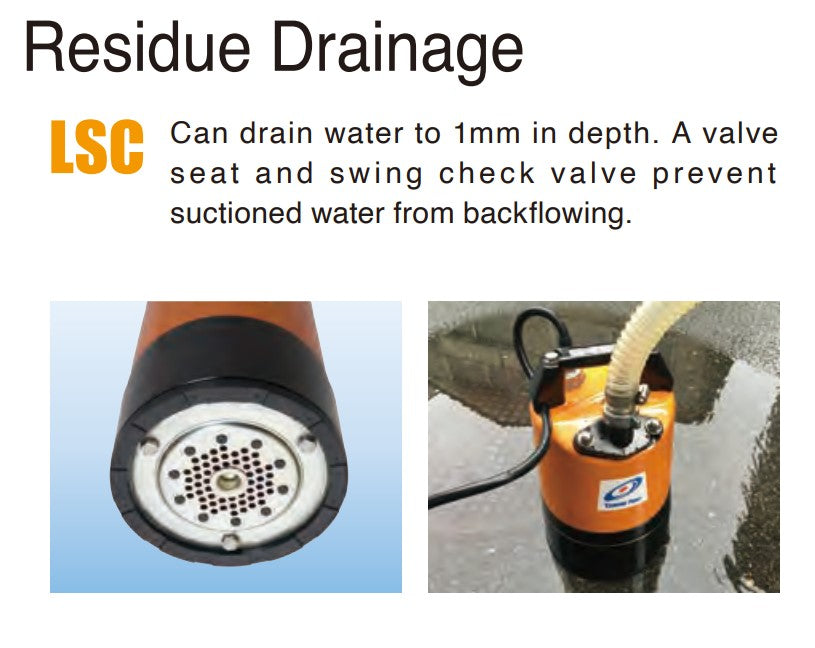

The Tsurumi LSC1.4S 0.48kW Portable Submersible Drainage Pump with Swing Check Valve (Max 168LPM/110kPa) is a versatile solution for removing residue. With its specially designed bottom plate, this single-phase pump can drain down to 1mm water level. The swing check valve ensures that no water flows back when the pump stops operating. Additionally, the rubber stand protects the floor from scratches, while the discharge direction can be changed between vertical and inclined to prevent hose folding or bending.

FEATURES

• Semi-open, Ductile Iron impeller with replaceable / adjustable wearplate and built in check valve allows for residual water removal down to 0.04” of an inch
• Double inside mechanical seals with silicon carbide faces, running in an oil filled chamber and further protected by a lip seal running against a replaceable, 403 stainless steel shaft sleeve, provides for the most durable seal design available.
• Highly efficient, continuous duty,air filled, copper wound motor with class E insulation minimizes the cost of operation
• Built in thermal amperage sensing protector preventsmotor failure due to overloading or accidentaL run -dry conditions
• Double shielded, permanently lubricated, high temperature C3 ball bearings rated for a B-10 life of 60,000 hours
  extend operational life
• Top discharge, flow-thru design enables operation at low water levels for extended periods

APPLICATION

• Residential, commercial, industrial residual drainage
• Basement sump pump (does not require a sump).
• Decorative waterfalls and fountains

SPECIFICATION

• Discharge Size: 3/4" NPT (19 mm)

• Horsepower Range: 2/3 HP. (0.48 Kw)

• Performance Range:
• Temperature: 0 to 40°C
