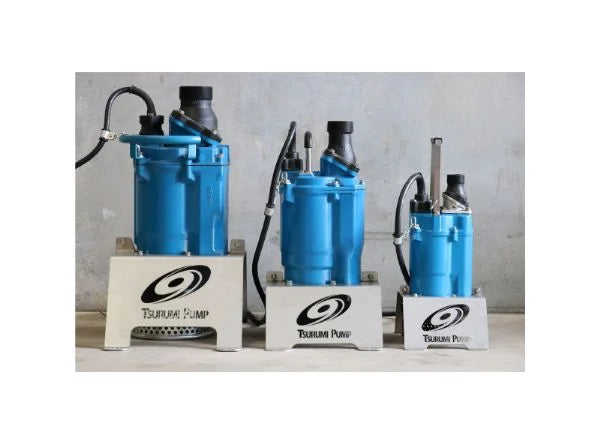

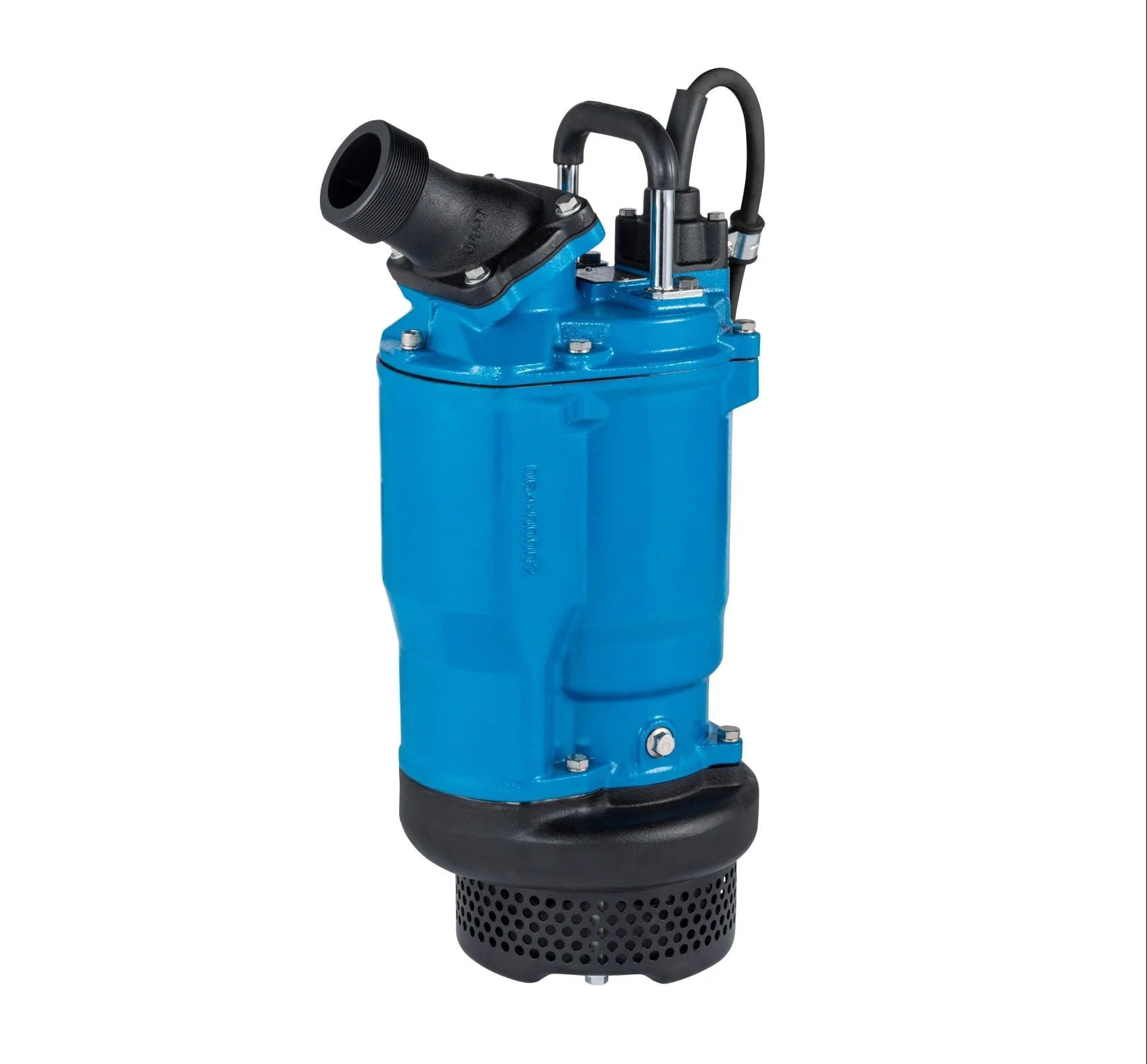

Tsurumi KTZ Series Submersible High Head Heavy Duty Drainage Pump with High-Chromium Cast Iron Impeller - Three Phase

The KTZ-series is Tsurumi’s flagship line of submersible pumps. Made with a cast iron body and high chromium cast iron impeller, the pumps can withstand the most demanding conditions found in construction, aggregate and mining applications. Versatility is increased as each model has the capability of being easily converted between high head and high volume performance with a simple change of impeller, suction cover and hose coupling.

Dual silicon carbide mechanical seals are isolated in the oil chamber to protect the seal
faces against abrasion and corrosion. In addition, the seals are enclosed in Tsurumi’s
original Oil Lifter to ensure reliable lubrication and cooling. This design exceeds the
standard configuration of competitors and offers a longer mechanical seal life for a more
reliable pump. Pumps with a 7.5 to 22kW motor incorporate seal pressure relief ports, therefore mechanical seals are exposed only to the pressure developed by the sump submergence level. This virtually eliminates the premature wear and failure of mechanical seals in higher pressure applications.

FEATURES

• Anti-wicking Cable Entry

• Circle Thermal Protector

• Dual Inside Mechanical Seals with Silicon Carbide Faces
• Oil Lifter
• Seal Pressure Relief Ports
• Oil Seal
• Labyrinth Ring
• High-chromium Cast Iron Semi-open Impeller
• Agitating Mechanism

APPLICATIONS

• Construction
• Mining
