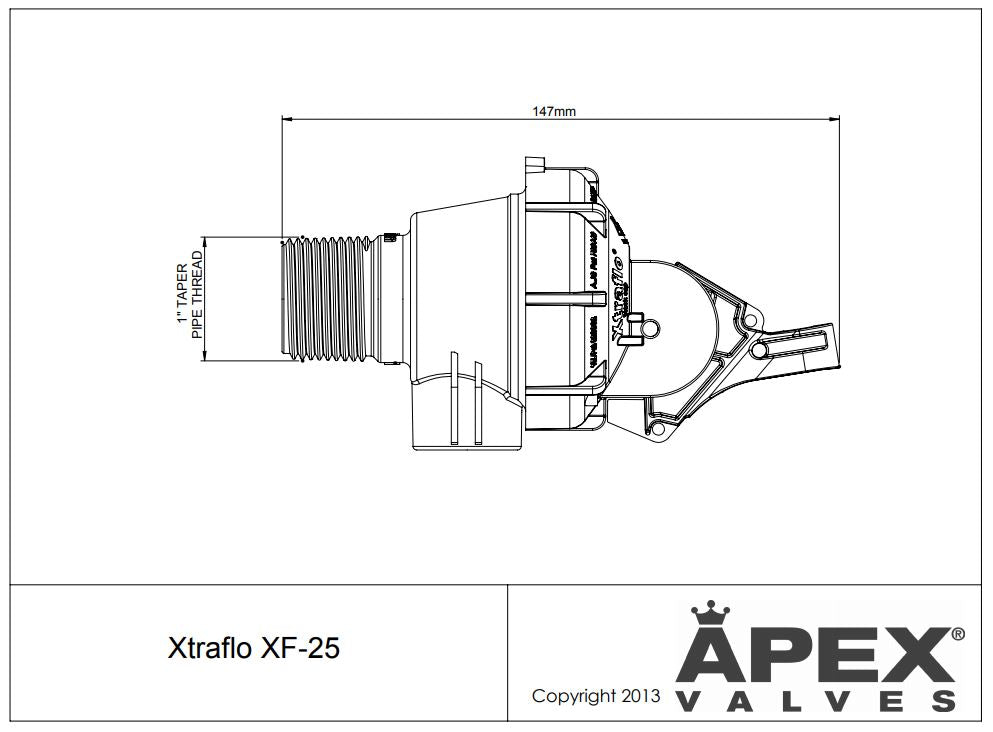

Apex Bottom Entry Xtraflo Armless Trough Valve (Max 400LPM)

For Large Troughs, High Demand Compact armless diaphragm valve with full-flow high volume fill. The valve has a 25mm water level differential between opening and closing, reducing pump motor overload. Full-flow operation, the pump runs unrestricted until trough is full. For Large Troughs and Header Tanks Requiring Backflow Prevention Use the adjustable arm top-entry XtraFlo valve for above water fill applications and backflow prevention. Arm length is adjustable to set water level and for greater opening and closing differential reducing pump wear.

FEATURES & BENEFITS

• Long life
• High flow
• Armless - Less damage from stock (excluding top entry version)
• Full on, full off
• Bottom, side or top mount
• Long tail and top entry version available
• UV stabilised and corrosion resistant
• All materials AS4020 approved (Water Quality Standard)

SPECIFICATIONS

• Working pressure: 30 - 1200 kPa (4 - 175 psi)
• Maximum water temperature: 60°C
• Minimum Water Temperature: 1°C

INSTALLATION

• Flush lines thoroughly
• Use thread seal tape and hand tighten
• Set float and tie off cord
• To lock the valve in the closed position, jam the cord at the cleat lock with valve closed.
