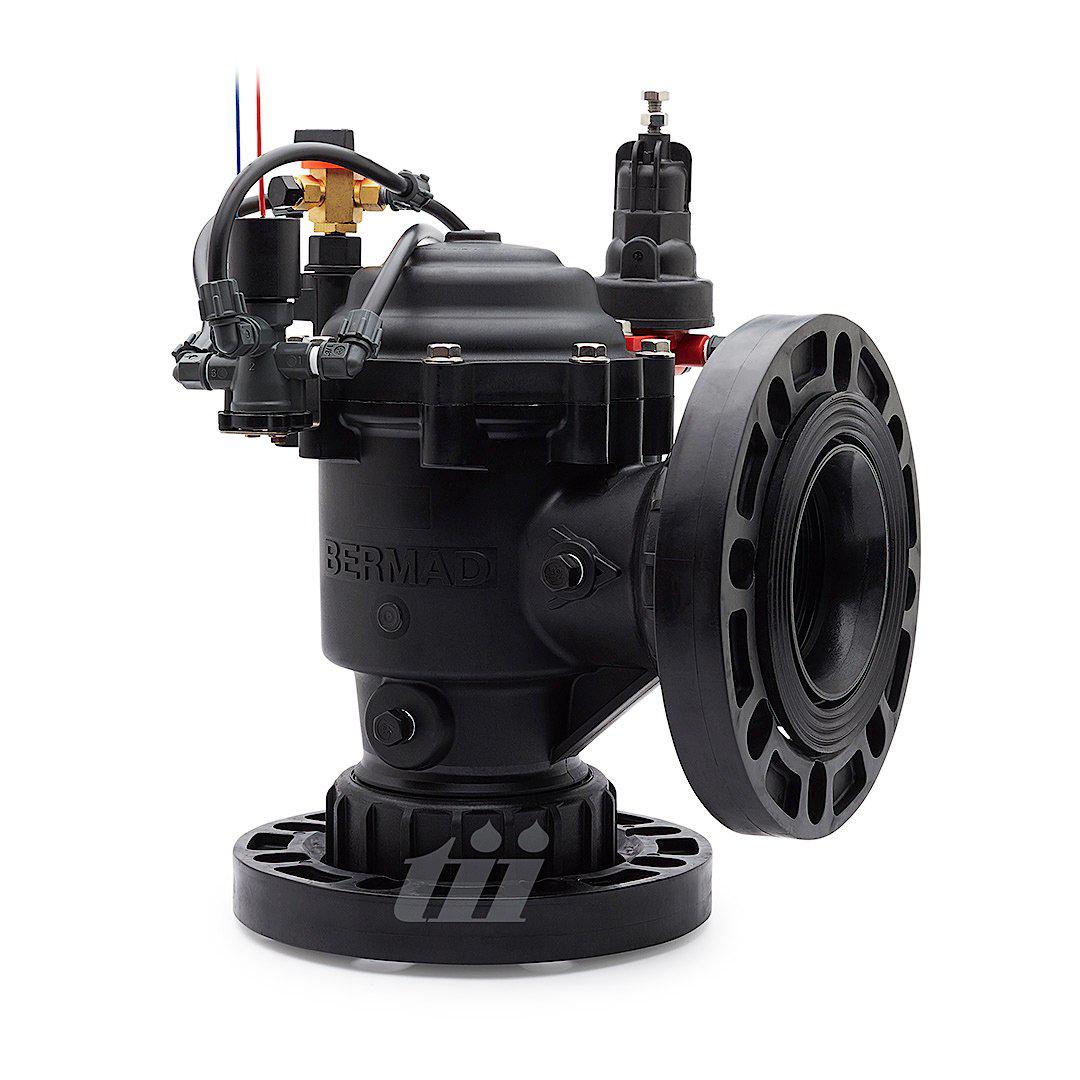

Bermad IR 120 55 3Q b Series Plastic Hydraulic Pressure Reducing Valve with S.390 Coil - Drip Irrigation System, Agricultural Water Control, and Landscape Water Management Solution

Bermad IR 120 55 3Q b Series Plastic Hydraulic Pressure Reducing Valve with S.390 Coil - Drip Irrigation System, Agricultural Water Control, and Landscape Water Management Solution

$342.05 $621.92 -45% OFF

Free shipping on all orders over $50

7-15 days international

8 people viewing this product right now!

30-day free returns

Secure checkout

50751324

Guranteed safe checkout

Description

ermad IR-120-55-3Q-b Series Plastic Hydraulically Operated Pressure Reducing Valves with S.390 Coil (Drip tape Applications)

The BERMAD Model IR-120-55-3Q-b is a hydraulically operated, diaphragm actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure. It either opens or shuts in response to an electric signal. The BERMAD IR-120-55-3Q-b also serves as a Pressure Relief Valve, protecting the system even when in closed position.

APPLICATIONS

Computerized Irrigation Systems
Drip-Tape Systems
Low Set Pressure Applications
Remote and/or Elevated Plots
Multiple Control Valves System
Energy Saving Irrigation Systems

FEATURES

Solenoid Controlled PRV with Relief Override Feature

-Protects downstream systems
-Relieves supply pressure peaks

Pressure Reducing Servo Pilot Controlled

-Dynamic integrated needle valve
-Settable to 0.5 bar; 7 psi
-Very low hysteresis

Engineered Plastic Valve with Industrial Grade Design

-Highly durable, chemical and cavitation resistant
-No internal bolts and nuts

hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing
-Requires low opening and actuation pressure
-Prevents diaphragm erosion and distortion
