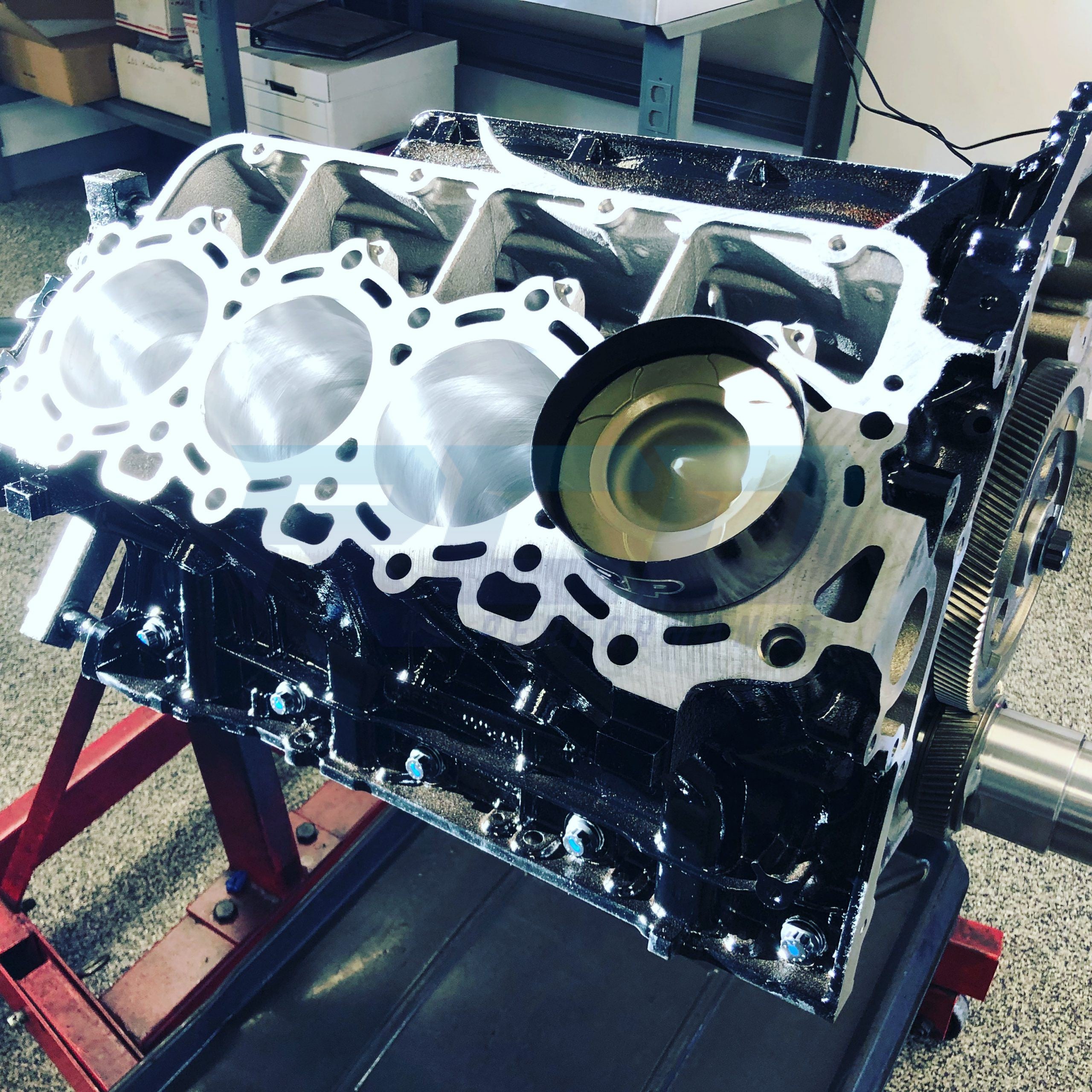

2011 - 2019 Ford 6.7L Remanufactured Short Block Assembly.
This is available in 5 variants.
Stage 1
New OE Rods & ARP Rod Bolts
Mahle Pistons & Rings
Mahle HX Series Rod and Main Bearings
ACL Plus Series Cam Bearings
New OEM Cam
New OE Lifters & Guides
Torque Plate Honed For ARP Studs
Stage 1.5
New HD OE Rods & ARP Rod Bolts
Mahle Ceramic Coated Pistons & Rings
Mahle HX Series Rod and Main Bearings
ACL Plus Series Cam Bearings
RCD Stage I Billet Cam
New OE Lifters & Guides
Torque Plate Honed For ARP Studs
Stage 2
New HD OE Rods & ARP Rod Bolts
2017+ High Torque Updated Crankshaft
Mahle Pistons & Rings
Mahle HX Series Rod and Main Bearings
ACL Plus Series Cam Bearings
RCD Stage II Billet Cam
New OE Lifters & Guides
Torque Plate Honed For ARP Studs
Stage 2.5
New HD OE Rods & ARP Rod Bolts
2017+ High Torque Updated Crankshaft
Mahle Ceramic Coated Pistons & Rings
Mahle HX Series Rod and Main Bearings
ACL Plus Series Cam Bearings
RCD Stage II Billet Camshaft
New OE Lifters & Guides
Torque Plate Honed For ARP Studs
Stage 3
RCD 4140 Billet Steel Main Caps
RCD Billet Main Girdle
ARP Main Studs
Line Bored Main Tunnel
Steel Monotherm™ Pistons & Rings
RCD Billet Connecting Rods
2017+ High Torque Updated Crankshaft
RCD Billet LPOP Gear Set
Front Cover w/ Water Pump
Upper Oil Pan
Mahle HX Series Rod and Main Bearings
RCD Stage III Billet Camshaft
New, Modified OE Lifters & Guides
Oil Galleys Tapped & Pipe Plugs Installed
ATI Balancer & Billet SFI® Flex Plate
Custom RCD Fasteners
Fully Balanced W Heavy Metal
Torque Plate Honed For ARP Studs
RCD Fabricated Aluminum Oil Pan
$1000 Core Fee
Windowed or cracked blocks will not receive core credit.
All RCD engines include the following standard:
• Baked, Shot Blasted Magnaflux for Cracks
• Digitized, CNC Blueprinted Deck Heights, Etc.
• Bored & Diamond Honed Inside Our CNC +/- .0002"
• Line Honed, Bored As Needed
• Surface Finishes Exceed OEM Specs
• Balanced to meet or exceed OEM Specs
All Stage 2.0 and above engines require use of FC3Z-6312-B Harmonic Damper
