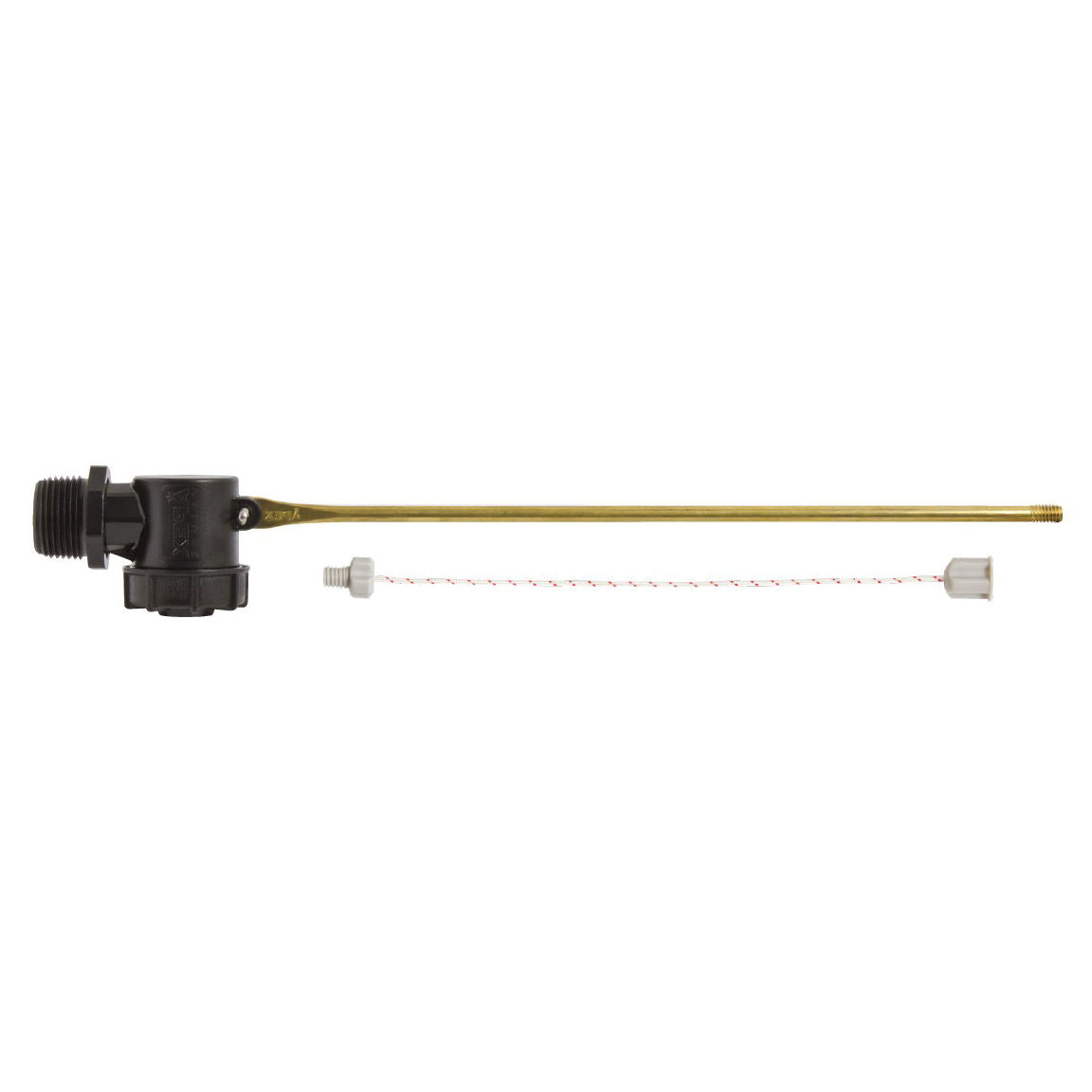

Apex Series AP20 Full Flow Trough Valve for medium to large demand flow rates up to 310 l/min. The Acetyl full flow valve is a more cost effective solution to the full flow brass valve. Two Sizes in one valve. Cost effective solution to the brass full flow valve. Includes glass filled Acetyl bush for 20mm or 25mm connection.

• Full flow design

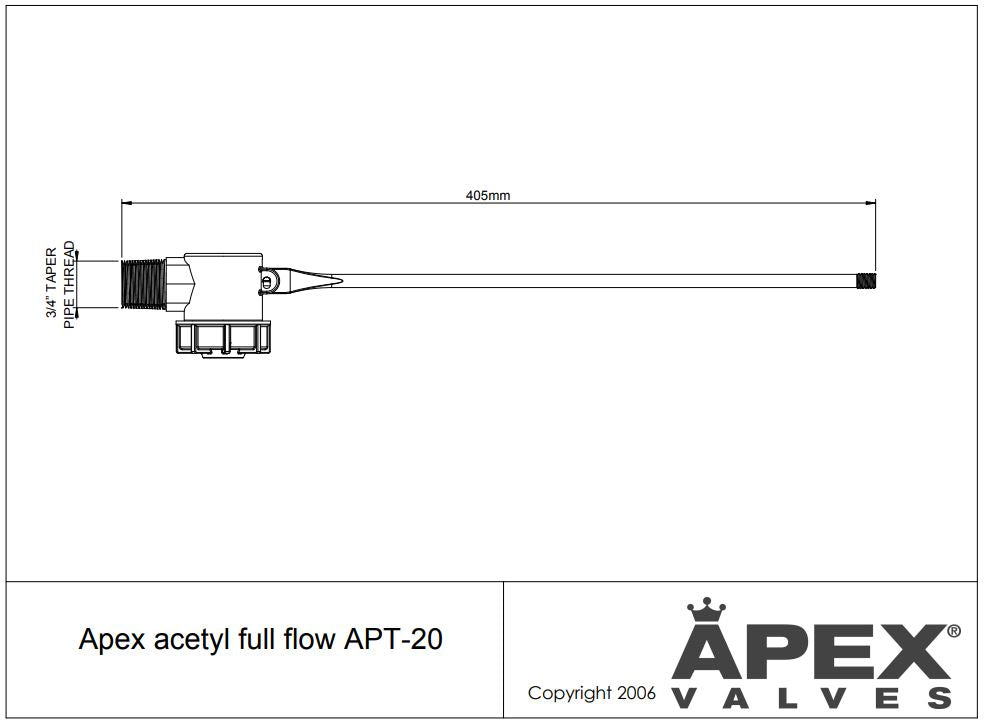

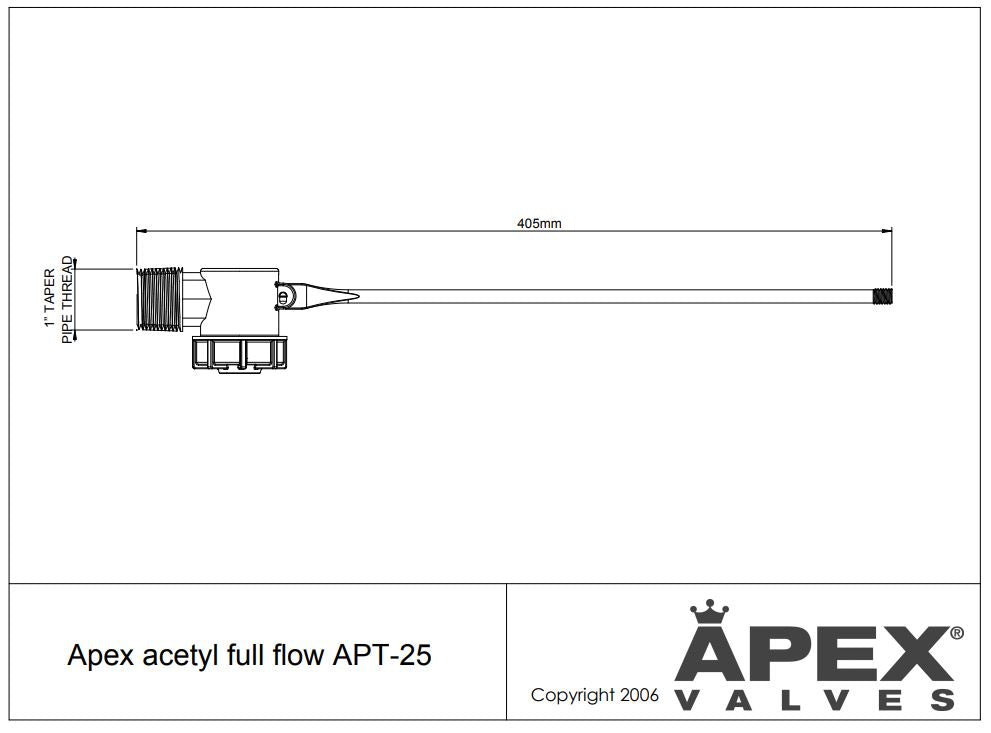

• Includes glass filled Acetyl bush for 20mm or 25mm connection
• Cost effective solution to the Brass Full Flow

SPECIFICATIONS

• Working Pressure: 0 - 1200 kPa (175 psi)

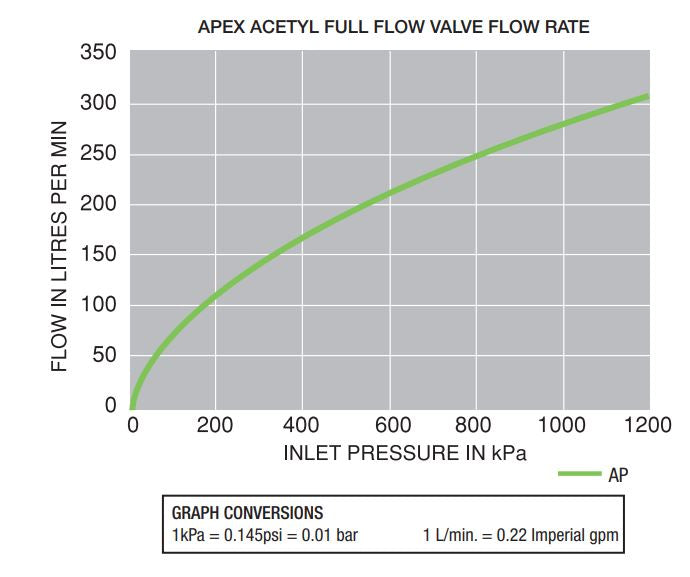

• Flow Rate: 310 L/min (70 gal/min) @ 1200 kPa (175 psi)
• Temperature Range: 1°C - 60°C (34°F - 140°F)
